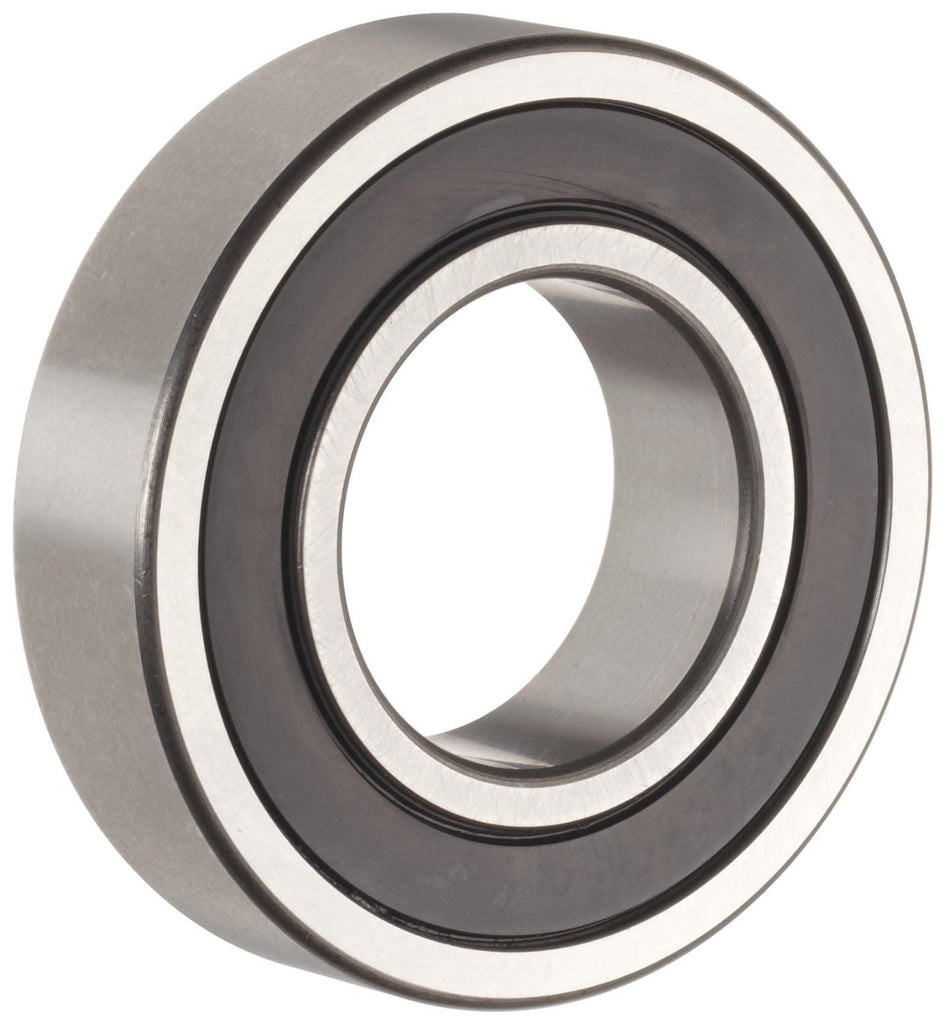

1601 2RS, 3/16" I.D. X 11/16" O.D. Sealed Radial Ball Bearing
$ 1.94
1601-2RS, Inch Dimension Ball Bearing
Precision ground bearings designed to be interchangeable with traditional semi-ground inch series bearings. These ABEC-1 tolerance bearings have precision ground deep-groove races on both the inner ring and outer ring, which enables them to sustain moderate axial loads as well as high radial loads. Balls are separated by a pressed steel cage.
- Item: Radial Ball Bearing
- Bearing Type: Double Sealed
- Bore Dia.: 0.1875"
- Bore Tolerance: +0/-0.0003"
- Outside Dia.: 0.6875"
- Outside Dia. Tolerance: +0/-0.0003"
- Width: 0.3125"
- ABEC Tolerance: 1
- Dynamic Load Capacity: 491 lb.
- Static Load Capacity: 194 lb.
- Max. RPM: 5,000
- Temp. Range: -40 Degrees to 350 Degrees F
- Bearing Material: 52100 Chrome Steel
- Cage Material: Pressed Steel
- Seal Material: Synthetic Rubber
- Lubrication: Polyrex EM Grease
-
Industry Number: 1601-2RS

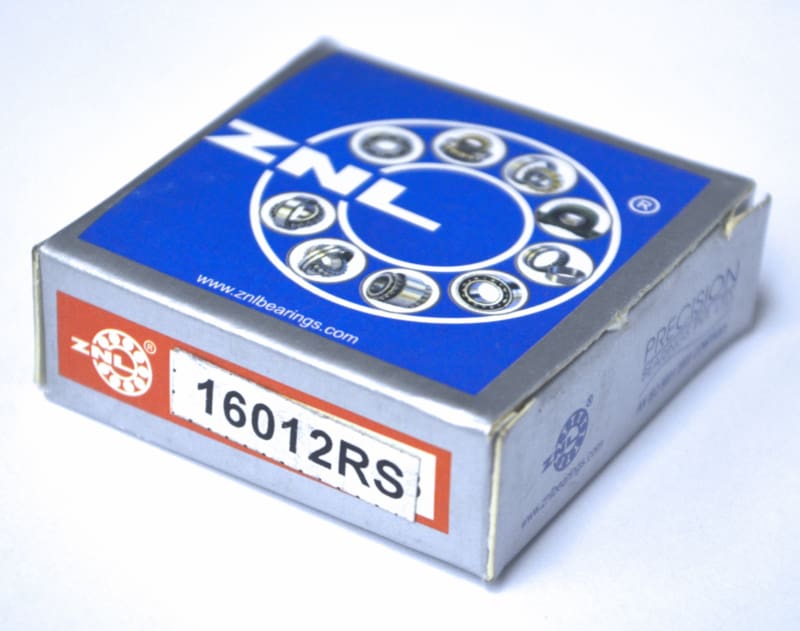

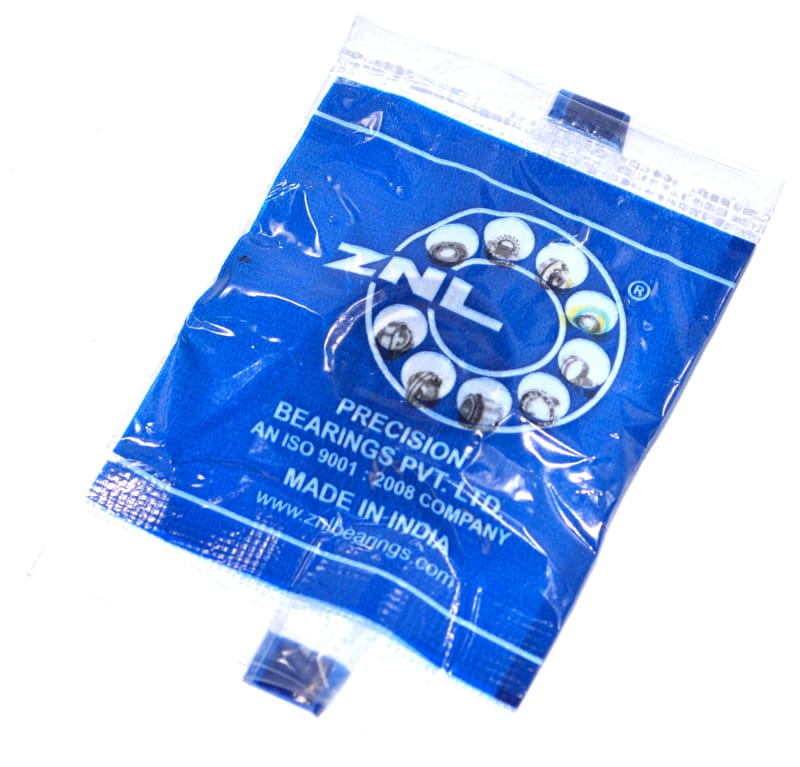

- Packaging: Individually Boxed
- Mfg.: ZNL/BL
-
Country of Origin: India
Precision ground bearings designed to be interchangeable with traditional semi-ground inch series bearings. These ABEC-1 tolerance bearings have precision ground deep-groove races on both the inner ring and outer ring, which enables them to sustain moderate axial loads as well as high radial loads. Balls are separated by a pressed steel cage.
