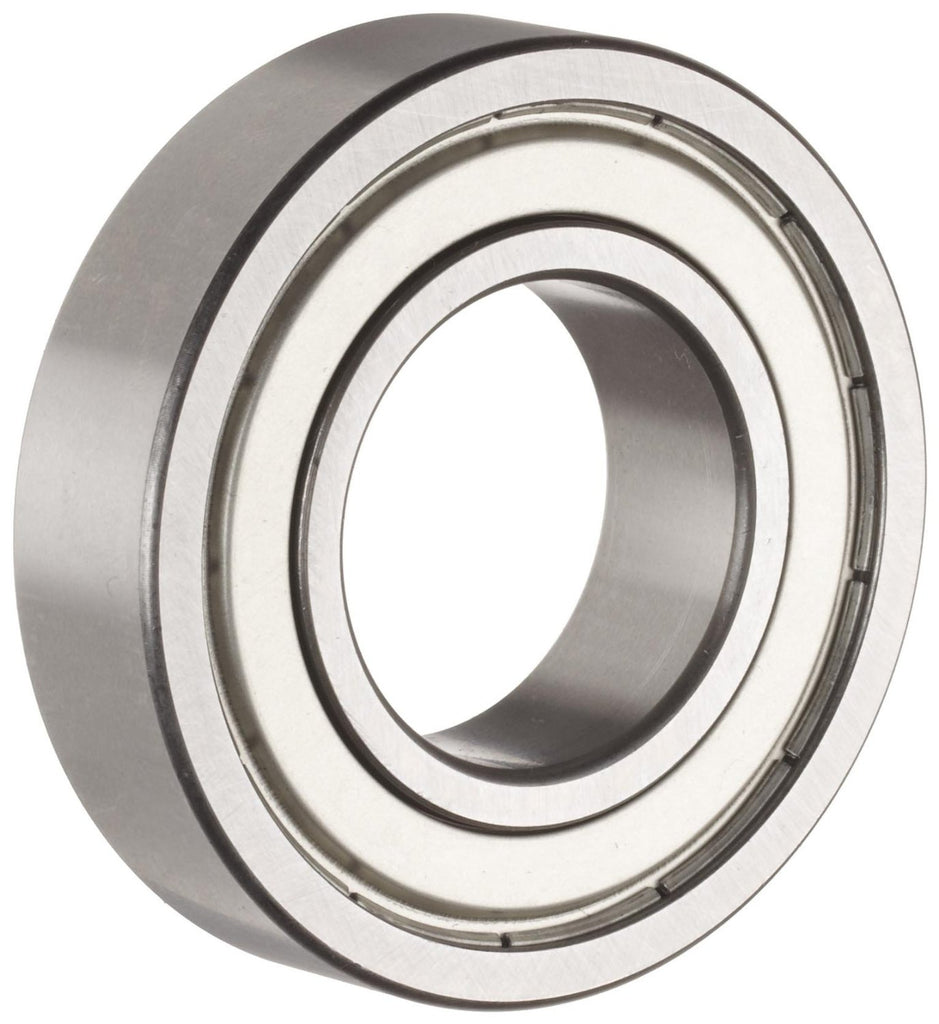

1602-ZZ, 1/4" I.D. X 11/16" O.D. Shielded Radial Ball Bearing

$ 3.00


1602 ZZ  Inch Dimension Series Ball Bearing

Precision ground bearings designed to be interchangeable with traditional semi-ground inch series bearings. These ABEC-1 tolerance bearings have precision ground deep-groove races on both the inner ring and outer ring, which enables them to sustain moderate axial loads as well as high radial loads. Balls are separated by a pressed steel cage.

Imported by well known industrial wholesaler Bearings Limited, you have the assurance and guarantee that these bearings meet or exceed the current and published ABEC-1
 standards for dimensional tolerance, speed rating and load capacity.

  • Item: Radial Ball Bearing
  • Bearing Type: Double Shield
  • Bore Dia.: 0.25"
  • Bore Tolerance: +0/-0.0003"
  • Outside Dia.: 0.6875"
  • Outside Dia. Tolerance: +0/-0.0003"
  • Width: 0.25"
  • ABEC Tolerance: 1
  • Dynamic Load Capacity: 491 lb.
  • Static Load Capacity: 194 lb.
  • Max. RPM: 6,000
  • Temp. Range: -40 Degrees to 350 Degrees F
  • Bearing Material: 52100 Chrome Steel Alloy
  • Cage Material: Pressed Steel
  • Shield Material: Steel
  • Lubrication: Polyrex EM Grease
  • Industry Number: 1602ZZ
  • Packaging: Bulk
  • Origin: China / Other
