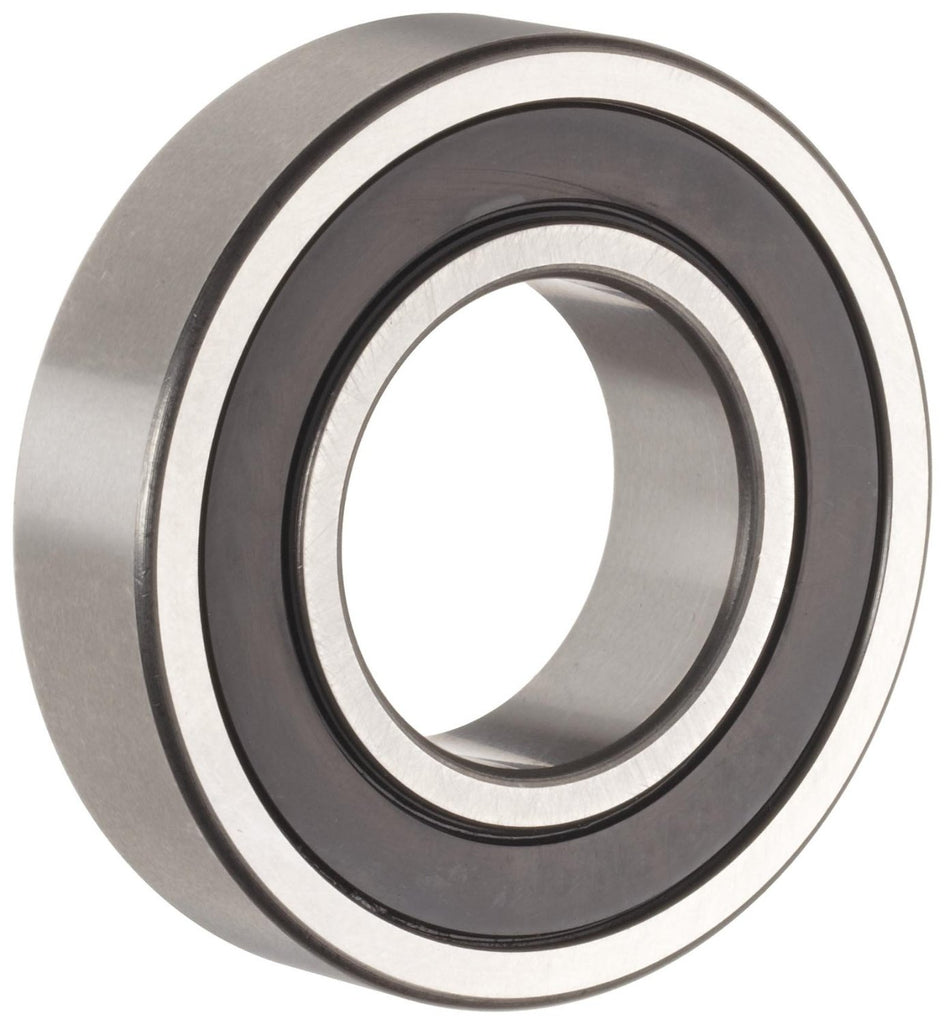

1603 2RS, 5/16" ID X 7/8" OD Sealed Ball Bearing

$ 3.00


1603-2RS Inch Dimension Series Ball Bearing

Precision ground bearings designed to be interchangeable with traditional semi-ground inch series bearings. These ABEC-1 tolerance bearings have precision ground deep-groove races on both the inner ring and outer ring, which enables them to sustain moderate axial loads as well as high radial loads. Balls are separated by a pressed steel cage.

Imported by well known industrial wholesaler Bearings Limited, you have the assurance and guarantee that these bearings meet or exceed the current and published ABEC-1
 standards for dimensional tolerance, speed rating and load capacity.

  • Item: Radial Ball Bearing
  • Bearing Type: Double Seals
  • Bore Dia.: 0.3125"
  • Bore Tolerance: +0/-0.0003"
  • Outside Dia.: 0.875"
  • Outside Dia. Tolerance: +0/-0.0004"
  • Width: 0.3437"
  • ABEC Tolerance: 1
  • Dynamic Load Capacity: 747 lb.
  • Static Load Capacity: 317 lb.
  • Max. RPM: 6,000
  • Temp. Range: -40 Degrees to 350 Degrees F
  • Bearing Material: 52100 Chrome Steel Alloy
  • Cage Material: Pressed Steel
  • Seal Material: Nitrile
  • Lubrication: Polyrex EM Grease
  • Industry Number: 1603-2RS
  • Packaging: Bulk
  • Manufacturer: Bearings Limited (BL)
