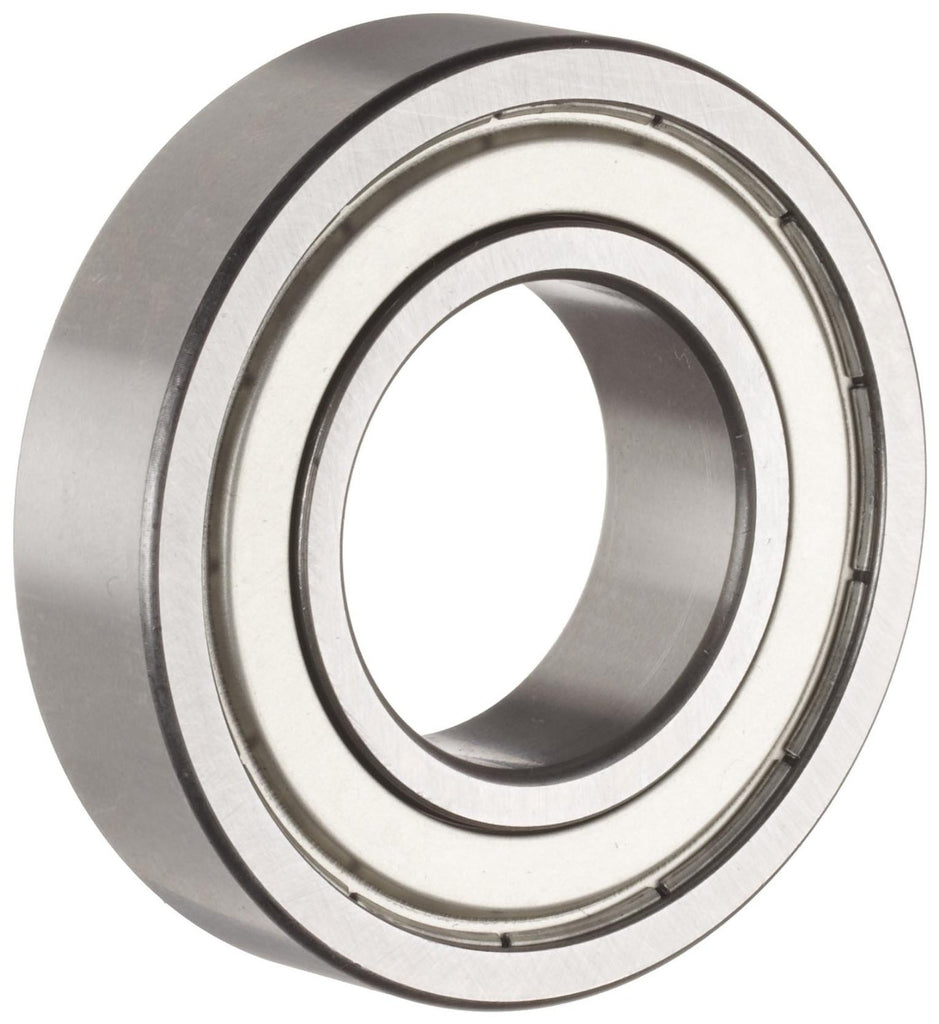

1604-ZZ, 3/8 X 7/8 X 11/32" Inch Dimension Shielded Radial Ball Bearing

$ 1.58


1604-ZZ Inch Dimension Deep Groove Series Radial Ball Bearing

Precision ground bearings designed to be interchangeable with traditional semi-ground inch series bearings. These ABEC-1 tolerance bearings have precision ground deep-groove races on both the inner ring and outer ring, which enables them to sustain moderate axial loads as well as high radial loads. Balls are separated by a pressed steel cage.

ZNL is a major manufacturer of bearings to the wholesale and OEM markets so you have the assurance and guarantee that these bearings meet or exceed the current and published ABEC-1 standards for dimensional tolerance, speed rating and load capacity.

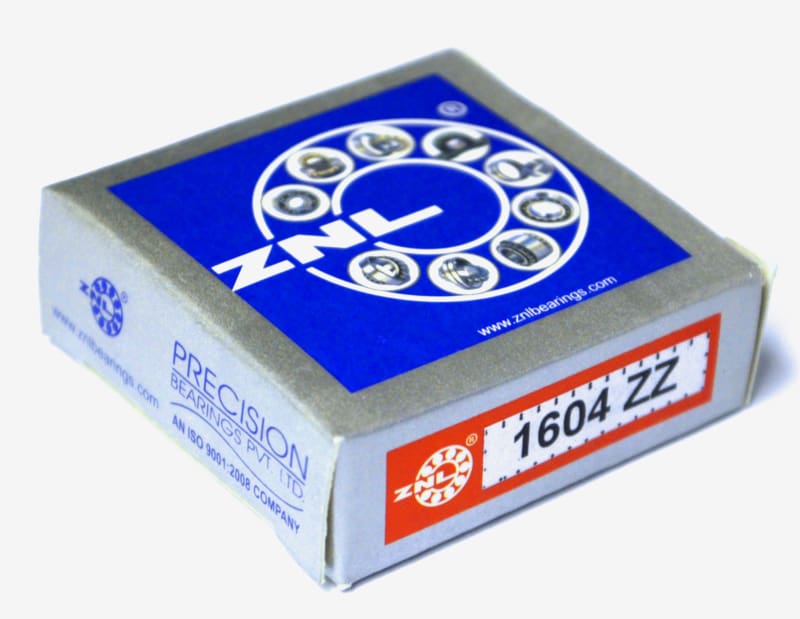

ZNL is a company obsessed with perfection. To prove they are world class, each bearing is packed into a custom heat sealed cellulose bag and then placed within a handsome metallic silver and blue carton.

  • Item: Radial Ball Bearing
  • Bearing Type: Double Shields
  • Bore Dia.: 0.375"
  • Bore Tolerance: +0/-0.0003"
  • Outside Dia.: 0.875"
  • Outside Dia. Tolerance: +0/-0.0004"
  • Width: 0.3438"
  • ABEC Tolerance: 1
  • Dynamic Load Capacity: 747 lb.
  • Static Load Capacity: 317 lb.
  • Max. RPM: 5,000
  • Temp. Range: -40 Degrees to 350 Degrees F
  • Bearing Material: 52100 Chrome Steel Alloy
  • Cage Material: Pressed Steel
  • Shield Material: Steel
  • Lubrication: Polyrex EM Grease
  • Industry Number: 1604-ZZ, 1604 2Z
  • Packaging: Individual Boxes
  • Origin: India
