1630-2RS, 3/4 X 1-5/8 " Inch Dim. Ball Bearing BL

$ 5.30

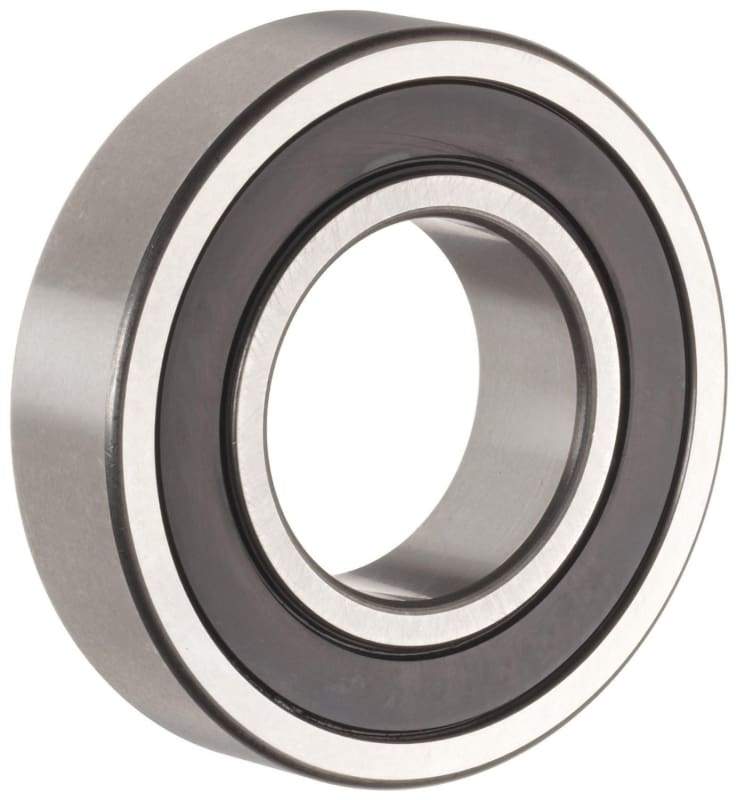

1630-2RS Inch Dimension Series Deep Groove Radial Ball Bearing

Precision ground bearings designed to be interchangeable with traditional semi-ground inch series bearings. These ABEC-1 tolerance bearings have precision ground deep-groove races on both the inner ring and outer ring, which enables them to sustain moderate axial loads as well as high radial loads. Balls are separated by a pressed steel cage.

Imported by well known industrial wholesaler Bearings Limited, you have the assurance and guarantee that these bearings meet or exceed the current and published ABEC-1 standards for dimensional tolerance, speed rating and load capacity.

  • Item: Deep Groove Radial Ball Bearing
  • Bearing Type: Double Sealed
  • Bore Dia.: 0.75"
  • Bore Tolerance: +0/-0.0004"
  • Outside Dia.: 1.625"
  • Outside Dia. Tolerance: +0/-0.0004"
  • Width: 0.5"
  • ABEC Tolerance: 1
  • Dynamic Load Capacity: 2,109 lb.
  • Static Load Capacity: 1,150 lb.
  • Max. RPM: 5,000
  • Temp. Range: -40 Degrees to 350 Degrees F
  • Bearing Material: Chrome Alloy Steel
  • Cage Material: Pressed Steel
  • Seal Material: Synthetic Rubber Molded to a Steel Plate
  • Lubrication: Polyrex EM Grease
  • Industry Numbers: 1630-2RS, 1630 2RS
  • Packaging: Bulk
  • Origin: China / Other

Customer Reviews

Based on 1 review
Spencer Deiber
Steering column

Cut my steering column off and will use the bearing to support the firewall end. Looks like it will work perfectly

Hi Spencer,

Thank you for taking the time to leave a review for our 1630-2RS ball bearing. We're glad to hear that it's working perfectly for your steering column project. If you need any further assistance, please don't hesitate to reach out to us.
