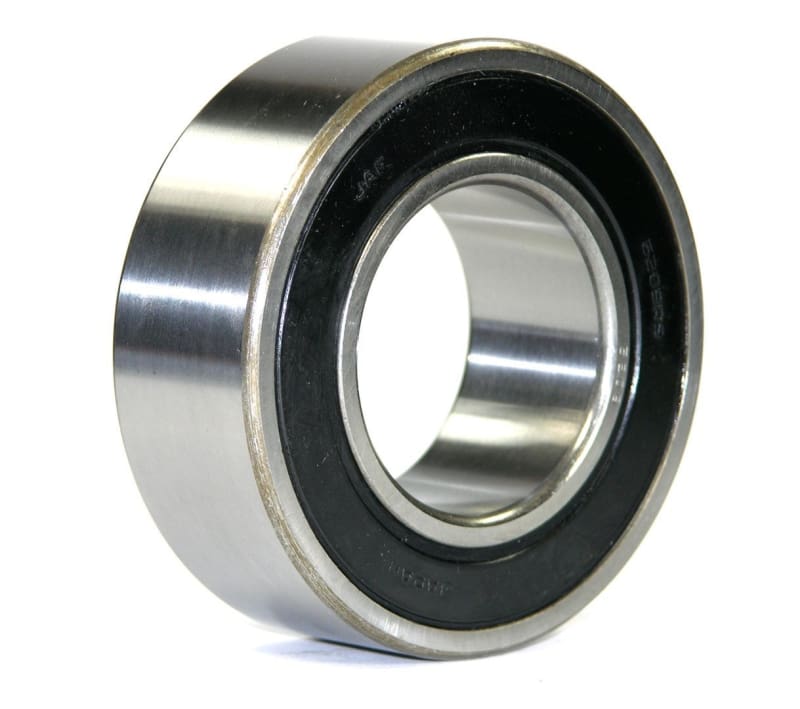

5204-2RS, JAF/IJK/KYK Brand, 2-Row Angular Contact Ball Bearing (0324)

$ 25.14

5204-2RS, 2-Row Angular Contact Ball Bearing Double-row angular contact ball bearing, supporting combined radial and bidirectional thrust loads Ball contact angle of 20 degrees relative to the inner and outer raceways increases thrust load capacity Rubber seals on both sides of the bearing to keep lubricant in and contaminants out Pressed steel cage evenly spaces balls for reduced friction, vibration, and noise Normal axial internal clearance for applications where thermal expansion is not a factor.

  • Item: Angular Contact Ball Bearing
  • Type: Double Row
  • Bore Dia.: 20mm
  • Outside Dia.: 47mm
  • Width: 20.6mm
  • Max. RPM: 12000
  • Dynamic Load Capacity: (Lb.)4400
  • Dynamic Load Capacity: (N)19572.175128
  • Static Load Capacity: (Lb.)2700
  • ABEC Tolerance: 1
  • Temp. Range: (F)-40 Degrees to 350 Degrees
  • Cage Materia: lHigh-Speed Polyamide
  • Seal Material: Nitrile Rubber
  • Lubrication: Polyrex EM Grease
  • Made in Japan

Customer Reviews

Based on 1 review
Andy Wallace
replacement bearing for a Rocket Hub on a YFZ450R

When I was unable to to secure bearings from Rocket I turned to Intech for replacement bearings. They were quick, precise and offered a quality sealed bearing for our race YFZ450R. Bearings arrived within 3 days of Ordering. Great company to deal with, they will be my go to for all our replacement bearings.
