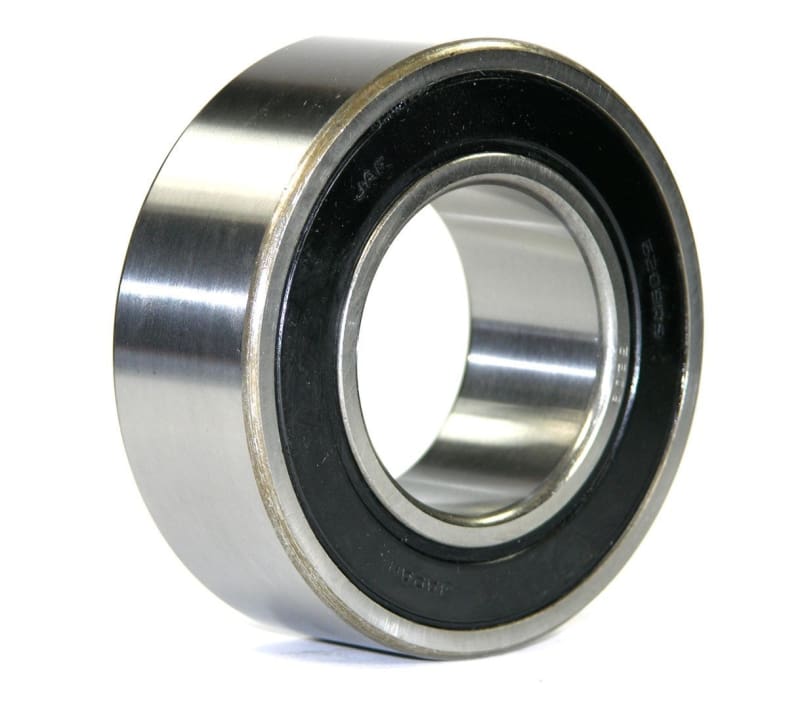

5212-2RS, JAF/IJK/KSM Brand, Made in Japan, 2-Row Angular Contact Ball Bearing (0324)

$ 77.75


5212-2RS, 2-Row Angular Contact Ball Bearing. Supporting combined radial and bidirectional thrust loads Ball contact angle of 20 degrees relative to the inner and outer raceways increases thrust load capacity Rubber seals on both sides of the bearing to keep lubricant in and contaminants out Pressed steel cage evenly spaces balls for reduced friction, vibration, and noise Normal axial internal clearance for applications where thermal expansion is not a factor.



  • BORE DIAMETER MILLIMETERS: 60 (d)
  • OUTER DIAMETER MILLIMETERS: 110 (D)
  • WIDTH MILLIMETERS: 36.5 (b)
  • DYNAMIC LOAD RATING: 76,000 N
  • STATIC LOAD RATING: 62,000 N
  • RADIAL CLEARANCE: Normal
  • SERIES: 5200
  • TOLERANCE ISO Class: 0
  • Max Speed (rpm) / Grease: 4,300
  • CONTACT ANGLE: 20°
  • Made in Japan
  •
