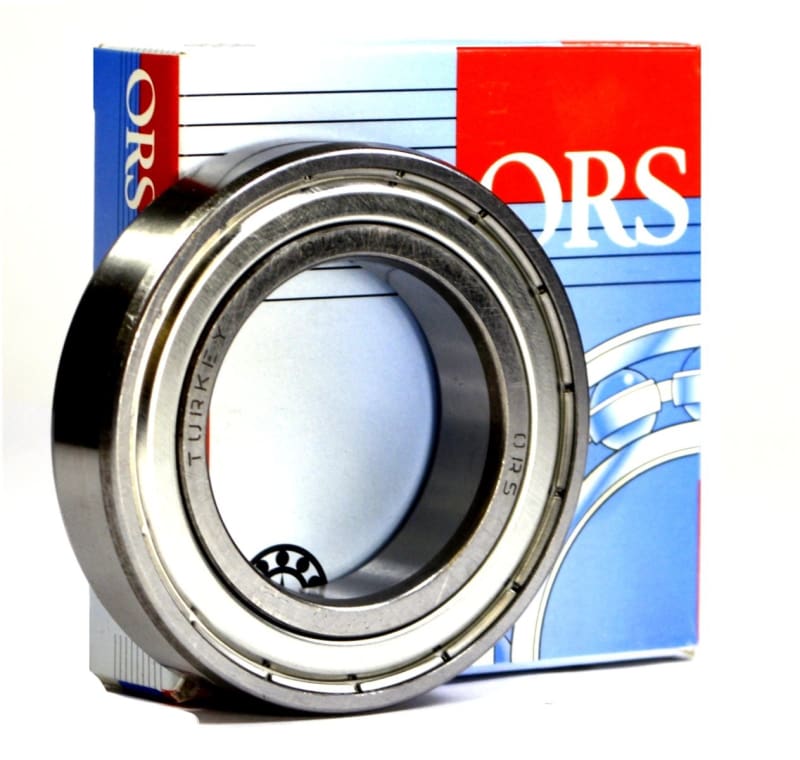

![6013-Zz Ors Deep Groove Ball Bearing With Two Shields](http://intechbearing.com/cdn/shop/products/6013-zz-ors-deep-groove-ball-bearing-with-two-shields-6000-series-radial-bearings-intech-inc_639_1024x1024.jpg?v=1548308635)
6013-ZZ , ORS Deep Groove Ball Bearing with Two Shields (0324)
$ 37.53
Item: 6013 ZZ C3 ORS Deep Groove Radial Ball Bearing
Bore Dia.: 65mm Bore Tolerance: +0/-.015mm
Outside Dia.: 100mm Outside Dia. Tolerance: +0/-.015mm
Width: 18mm
ABEC Tolerance: 1
Dynamic Load Capacity: 7,170 lb.
Static Load Capacity: 5,620 lb.
Max. Load Axial: 2,810 lb.
Max. RPM: 4,000
Temp. Range: -40 Degrees to 212 Degrees F.
Bearing Material: 52100 Chrome Steel
Cage Material: Pressed Steel
Shield Material: Pressed Steel
Lubrication: GJN Grease
Industry Standard Numbers: 6013 2RS C3, 6013-2RS C3
Bore Dia.: 65mm Bore Tolerance: +0/-.015mm
Outside Dia.: 100mm Outside Dia. Tolerance: +0/-.015mm
Width: 18mm
ABEC Tolerance: 1
Dynamic Load Capacity: 7,170 lb.
Static Load Capacity: 5,620 lb.
Max. Load Axial: 2,810 lb.
Max. RPM: 4,000
Temp. Range: -40 Degrees to 212 Degrees F.
Bearing Material: 52100 Chrome Steel
Cage Material: Pressed Steel
Shield Material: Pressed Steel
Lubrication: GJN Grease
Industry Standard Numbers: 6013 2RS C3, 6013-2RS C3
