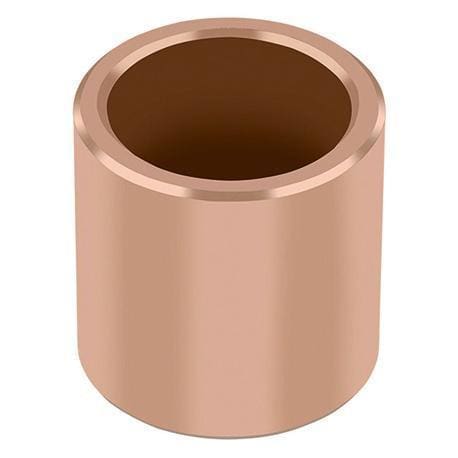

3/16 X 1/4 X 3/8 Part# AA225-6 Sintered Bronze Bushing - none

0.1875"X0.25"X0.375" 3/16" X 1/4" X 3/8", Part# AA225-6, Sintered Bronze Bushing (0424)

$ 0.36

AA225-6 BRONZE BUSHING 3/16"X1/4"X3/8"

Bunting Bearings offers a complete line of stock plain bearings, flange bearings and washers made of P/M bronze. Bunting sintered bronze stock bearings have long conformed to ASTM chemical and physical properties, and are the first to include all ASTM standard sizes to ASTM recommended dimensions and tolerances. After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10°F to 220°F.

Stock Item	Yes
Nominal Size I.D.	3/16 in
Nominal Size O.D.	1/4 in
I.D. Min	0.1865 in
I.D. Max	0.1875 in
O.D. Min	0.2510 in
O.D. Max	0.2520 in
Length	3/8 in
Min. Temperature	10 ºF
Max. Temperature	220 ºF
P Value (Max.)	2000
V Value (Max.)	1200
PV Value (Max.)	50000

Satisfied

The delivered bearings conform with specifications.

GREAT service

Ordered the bearings over the new year weekend. It was only a $12 order, but I got a call to give me an update on the delay, due to holidays. So for a very small order they went out of their way to keep me informed. THANKS

Dear Mr. Grenga,

ALL orders are important to us. We look forward to helping you again in the future.

All the Best,
Steve

0.1875"X0.25"X0.375" 3/16" X 1/4" X 3/8", Part# AA225-6, Sintered Bronze Bushing (0424)

$ 0.36

P Value (Max.)

V Value (Max.)

PV Value (Max.)
