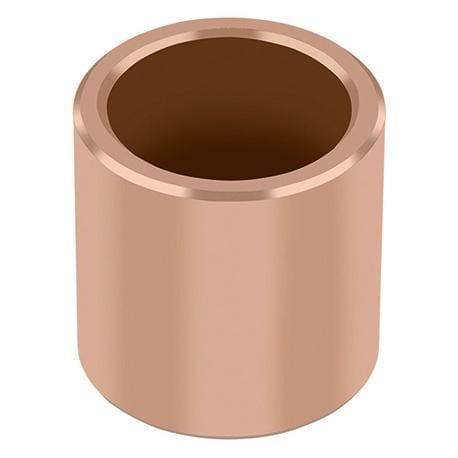

0.3125"X0.4375"X0.375" 5/16" X 7/16" X 3/8", Part# EP050706, Sintered Bronze Bushing

$ 1.92


EP050706 BRONZE BUSHING 5/16X7/16X3/8



Bunting Bearings offers a complete line of stock plain bearings, flange bearings and washers made of P/M bronze. Bunting sintered bronze stock bearings have long conformed to ASTM chemical and physical properties, and are the first to include all ASTM standard sizes to ASTM recommended dimensions and tolerances. After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10°F to 220°F.



Stock Item?1

Yes

Nominal Size I.D.

5/16 in

Nominal Size O.D.

7/16 in

I.D. Min

0.3135 in

I.D. Max

0.3145 in

O.D. Min

0.4395 in

O.D. Max

0.4405 in

Length



3/8 in

Min. Temperature

10 ºF

Max. Temperature

220 ºF

P Value (Max.)

2000

V Value (Max.)

1200

PV Value (Max.)

50000
