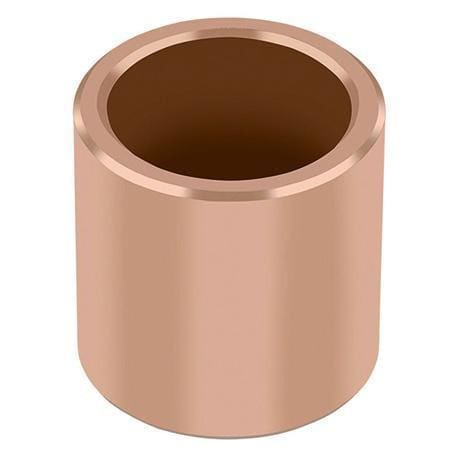

0.375"X0.75"X0.75" 3/8" X 3/4" X 3/4" , Part# EP061212, Sintered Bronze Bushing

$ 3.47


EP061212 POWDER FORMED BRONZE BUSHING 3/8X3/4X3/4

 Bunting Bearings offers a complete line of stock plain bearings, flange bearings and washers made of P/M bronze. Bunting sintered bronze stock bearings have long conformed to ASTM chemical and physical properties, and are the first to include all ASTM standard sizes to ASTM recommended dimensions and tolerances. After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10°F to 220°F.

Nominal Size I.D.

3/8 in

Nominal Size O.D.

3/4 in

I.D. Min

0.3760 in

I.D. Max

0.3770 in

O.D. Min

0.7520 in

O.D. Max

0.7530 in

Length

3/4 in

Min. Temperature

10 ºF

Max. Temperature

220 ºF

P Value (Max.)

2000

V Value (Max.)

1200

PV Value (Max.)

50000

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
P.
Good product

Bought this to replace worn bearing in B&D very old belt sander that no longer offers replacement parts. Original bearing was only 1/2" long and that size was not offered so cut this 3/4" bearing off to make it fit. Works perfectly and I can now get more years out of my sander.
