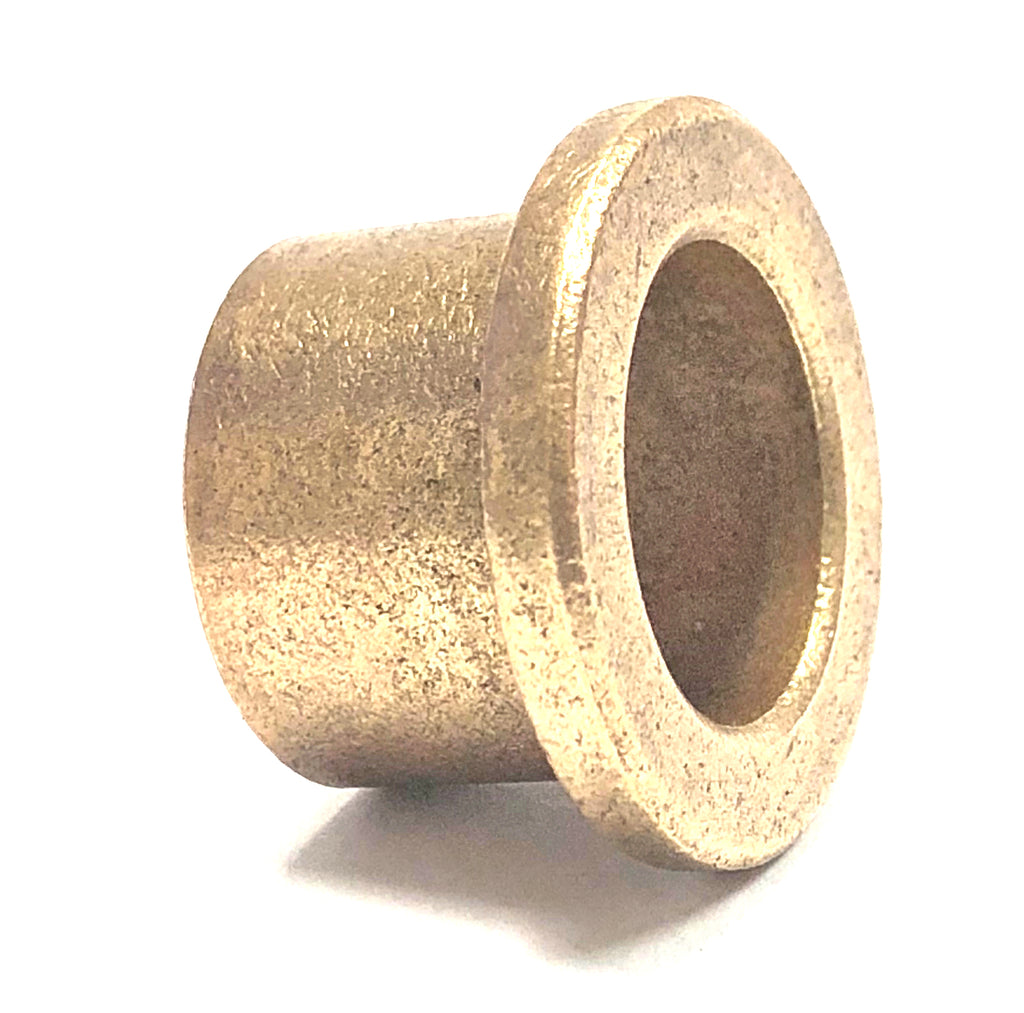

0.25"X0.375"X0.25" Flanged Oil Impregnated Bronze Bushing Part#FFB46-2 (0324)
$ 0.98
Part# FFB46-2 SAE941 Oil Filled Bronze
Bunting Oil-Filled Bronze Bearings- Stock Bearings- Bunting Bearings offers a complete line of stock plain bearings, flange bearings and washers made of P/M bronze. Bunting sintered bronze stock bearings have long conformed to ASTM chemical and physical properties, and are the first to include all ASTM standard sizes to ASTM recommended dimensions and tolerances. After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10°F to 220°F.
Bunting Oil-Filled Bronze Bearings- Stock Bearings- Bunting Bearings offers a complete line of stock plain bearings, flange bearings and washers made of P/M bronze. Bunting sintered bronze stock bearings have long conformed to ASTM chemical and physical properties, and are the first to include all ASTM standard sizes to ASTM recommended dimensions and tolerances. After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10°F to 220°F.
Nominal Size I.D. |
1/4 in |
Nominal Size O.D. |
3/8 in |
I.D. Min |
0.2510 in |
I.D. Max |
0.2520 in |
O.D. Min |
0.3760 in |
O.D. Max |
0.3770 in |
Length |
1/4 in |
Length Tolerance |
+/-0.005 in |
Flange O.D. |
1/2 in |
Flange O.D. Tolerance |
+/-0.005 in |
Flange Thickness |
3/64 in |
Flange Thickness Tolerance |
+/-0.005 in |
Min. Temperature |
10 ºF |
Max. Temperature |
220 ºF |
P Value (Max.) |
2000 |
V Value (Max.) |
1200 |
PV Value (Max.) |
50000 |
