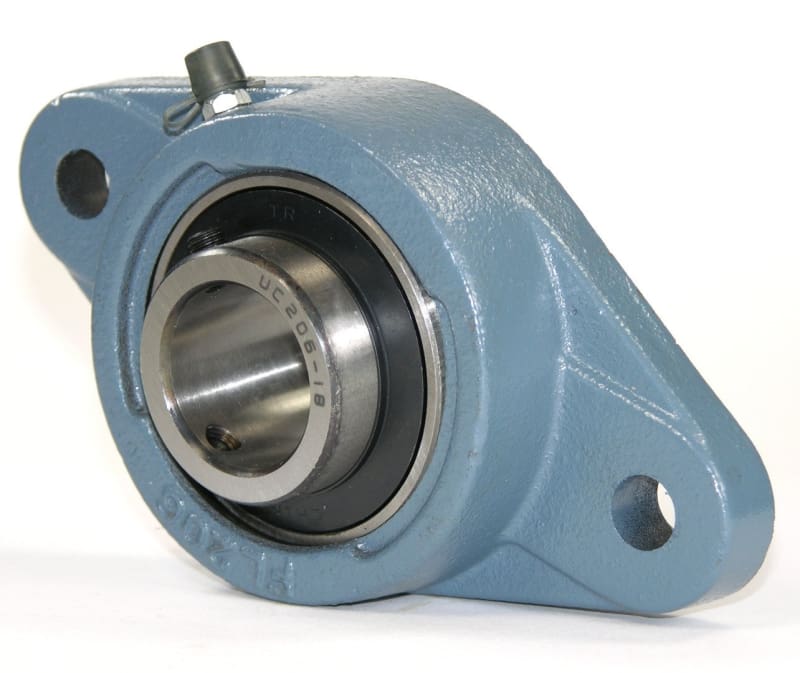

UCFL 204-20mm, 20mm 2-Bolt Flange Unit

• Bore Dia. 20mm
• Bearing Insert Type Ball
• Bearing Insert Material 52100 Chrome Steel
• Locking Type Set Screw
• Housing Material Cast Iron
• Number of Bolts 2
• Bolt Hole Size 3/8"
• Bolt Hole Center-to-Center 90mm
• Overall Height 33.3mm
• Overall Width 60mm
• Overall Length 113mm
• Dynamic Load Capacity 2878 lb.
• Static Load Capacity 1,495. lb
• Temp. Range -40 Degrees to 250 Degrees F
• Finish Painted

Download the Specifications Sheet for this Series
