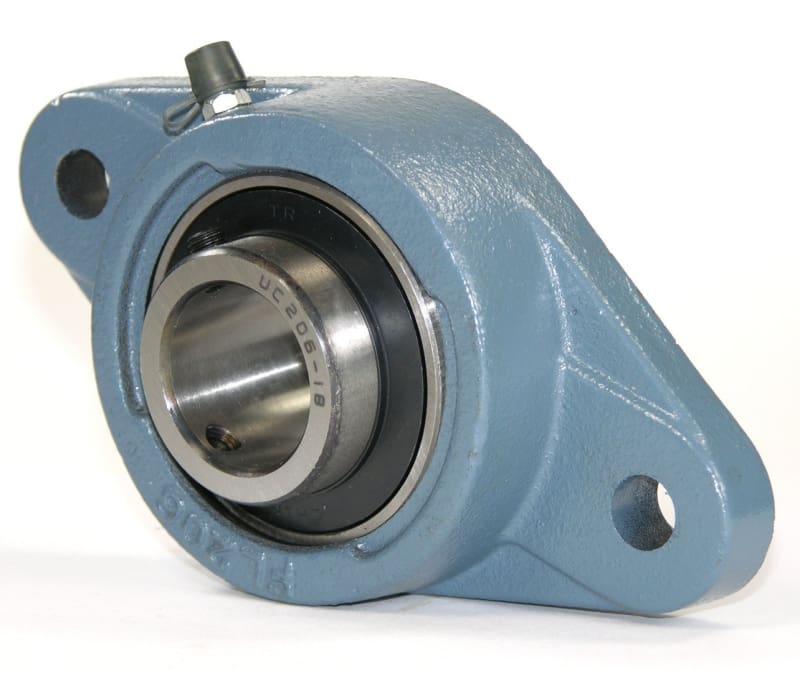

UCFL202-10, 5/8" 2-Bolt Flange Unit (0624)
$ 21.23
UCFL202-10, 5/8" 2-Bolt Flange Unit
•Bearing Material: Chromium Steel ( Gcr15 )
•Housing Material: Cast Iron
•Locking Set Screws
*Lubricate with Grease Fitting
Download the Specifications Sheet for this Series
Technical Specs
- Bore Dia. 5/8"
- Bearing Insert Type Ball
- Bearing Insert Material 52100 Chrome Steel
- Locking Type Set Screw
- Housing Material Cast Iron
- Number of Bolts 2
- Bolt Size 3/8"
- Bolt Hole Center-to-Center; 3-9/16" (90.0 mm)
- Overall Height: 1-5/16" (33.3 mm)
- Overall Width 2-3/8" (60.0 mm)
- Overall Length 4-7/16" (113.0 mm)
- Dynamic Load Capacity 2,878 lb.
- Static Load Capacity 1,495. lb
- Temp. Range -40 Degrees to 250 Degrees F
- Finish Painted
