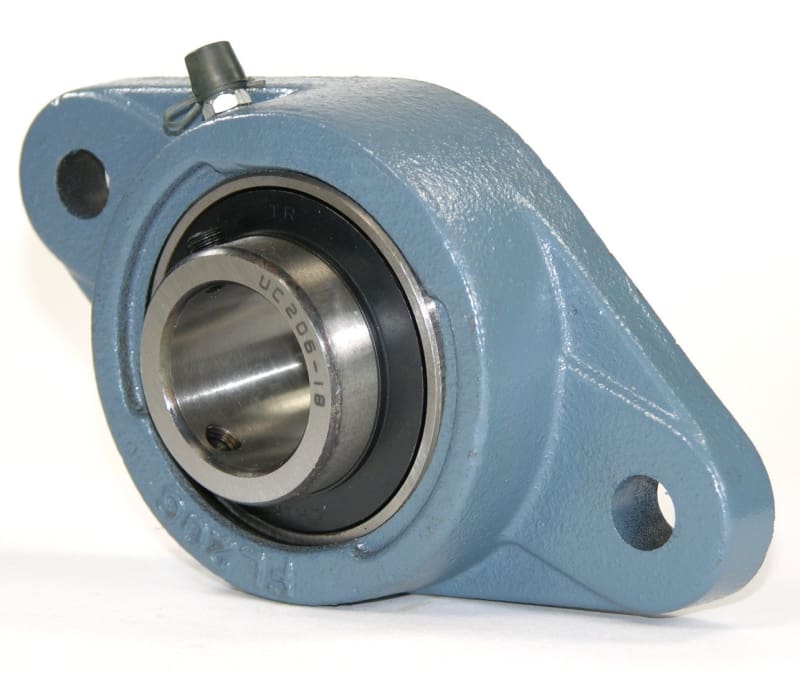

UCFL205-14, 7/8" 2-Bolt Flange Unit

$ 15.45


UCFL205-14, 7/8" 2-Bolt Flange Unit

  • Bore Dia. 7/8"
  • Bearing Insert Type Ball
  • Bearing Insert Material 52100 Chrome Steel
  • Locking Type Set Screw
  • Housing Material Cast Iron
  • Number of Bolts 2
  • Bolt Hole Size 3/8"
  • Bolt Hole Center-to-Center 99mm
  • Overall Height 35.8mm
  • Overall Width 68mm
  • Overall Length 130mm
  • Dynamic Load Capacity 3147 lb.
  • Static Load Capacity 1,765. lb
  • Temp. Range -40 Degrees to 250 Degrees F
  • Finish Painted

Download the Specifications Sheet for this Series

Oval 2-Bolt Flange : Wide Inner Race, Set-screw Locking, Normal Duty
