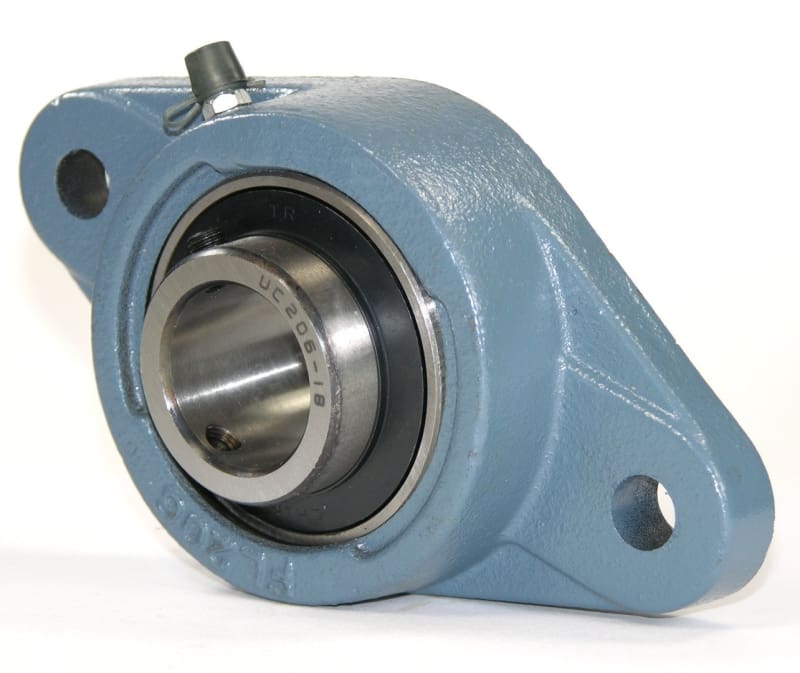

UCFL206-18, 1-1/8" 2-Bolt Flange Unit

• Bore Dia. 1-1/8"
• Bearing Insert Type Ball
• Bearing Insert Material 52100 Chrome Steel
• Locking Type Set Screw
• Housing Material Cast Iron
• Number of Bolts 2
• Bolt Size 3/8"
• Bolt Hole Center-to-Center 117mm
• Overall Height 40.2mm
• Overall Width 80mm
• Overall Length 148mm
• Dynamic Load Capacity 4,384 lb.
• Static Load Capacity 2,540. lb
• Temp. Range -40 Degrees to 250 Degrees F
• Finish Painted

Download the Specifications Sheet for this Series

•UCFL206-18 Oval Flange Pillow Block ( ISO 9001:2000 ) •Bearing Material: Chromium Steel ( Gcr15 ) •Housing Material: Cast Iron •Screw: Two set screw with Grease Fitting
