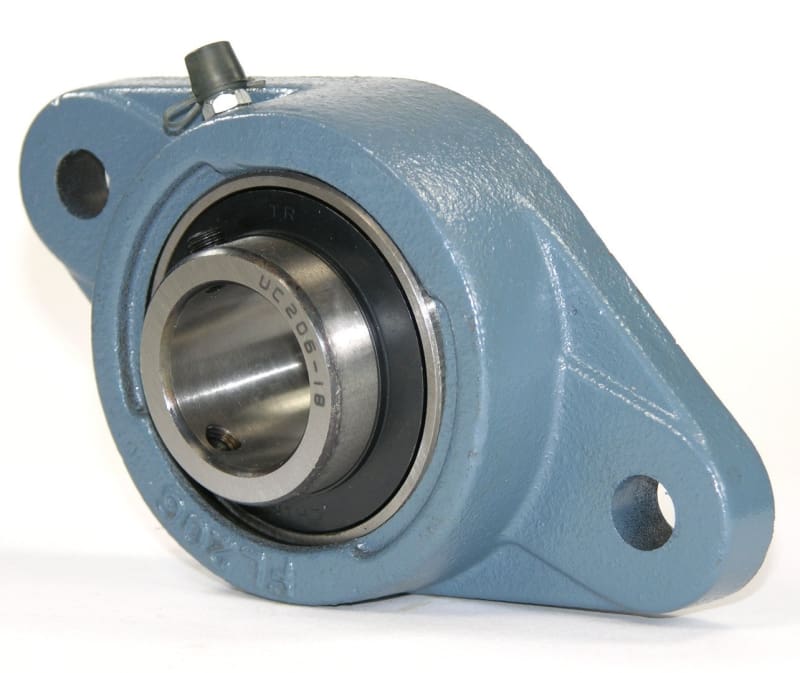

UCFL207-20, 1-1/4" 2-Bolt Flange Unit (0624)

$ 22.94


UCFL207-20, 1-1/4" 2-Bolt Flange Unit

  • Bore Dia. 1-1/4"
  • Bearing Insert Type Ball
  • Bearing Insert Material 52100 Chrome Steel
  • Locking Type Set Screw
  • Housing Material Cast Iron
  • Number of Bolts 2
  • Bolt Size 1/2"
  • Bolt Hole Center-to-Center 130mm
  • Overall Height 44.4mm
  • Overall Width 90mm
  • Overall Length 161mm
  • Dynamic Load Capacity 5,778 lb.
  • Static Load Capacity 3,440. lb
  • Temp. Range -40 Degrees to 250 Degrees F
  • Finish Painted

Download the Specifications Sheet for this Series

•Cast iron F207 flange block housing increases life of the bearing •UC207-20 chrome steel bearing for efficient operations at a wide range of speeds •Dynamic (radial) load rating of 25.7 kN and static (axial) load rating of 15.4 kN •Set screw prevents shaft slippage •1-1/4" inside diameter fits conventional cylindrical shafts
