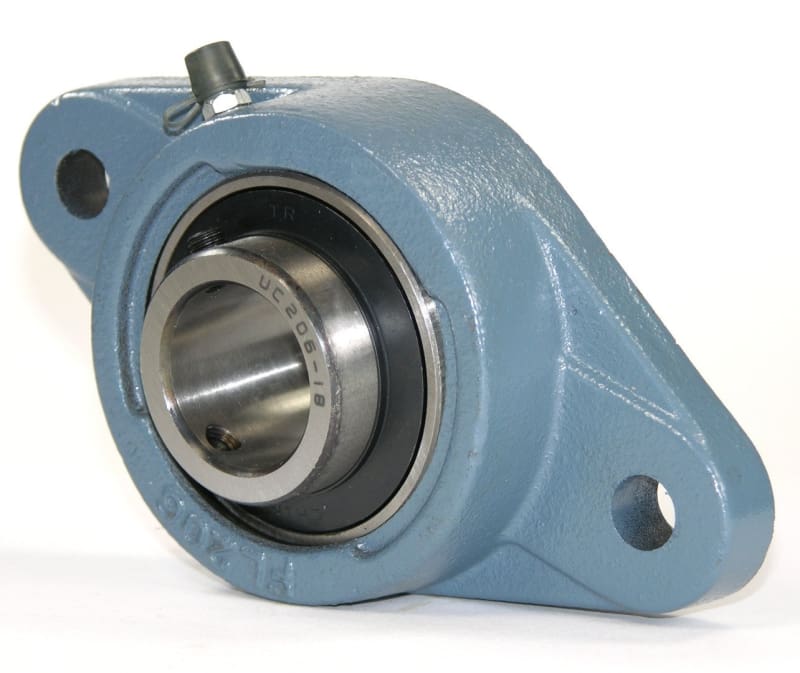

UCFL211-32, 2-0/0" 2-Bolt Flange Unit

$ 52.51


UCFL211-32, 2-0/0" 2-Bolt Flange Unit

  • Bore Dia. 2"
  • Bearing Insert Type Ball
  • Bearing Insert Material 52100 Chrome Steel
  • Locking Type Set Screw
  • Housing Material Cast Iron
  • Number of Bolts 2
  • Bolt Size 5/8"
  • Bolt Hole Center-to-Center 184mm
  • Overall Height 58.4mm
  • Overall Width 130mm
  • Overall Length 224mm
  • Dynamic Load Capacity 9,779 lb.
  • Static Load Capacity 6,564. lb
  • Temp. Range -40 Degrees to 250 Degrees F
  • Finish Painted

Download the Specifications Sheet for this Series

•Item: UCFL211-32 Bearing •Type: Mounted Bearings •Bolt Size: 5/8" •Basic Load (Cr): 43.4 KN •Basic Load (Cor): 29.4 KN
