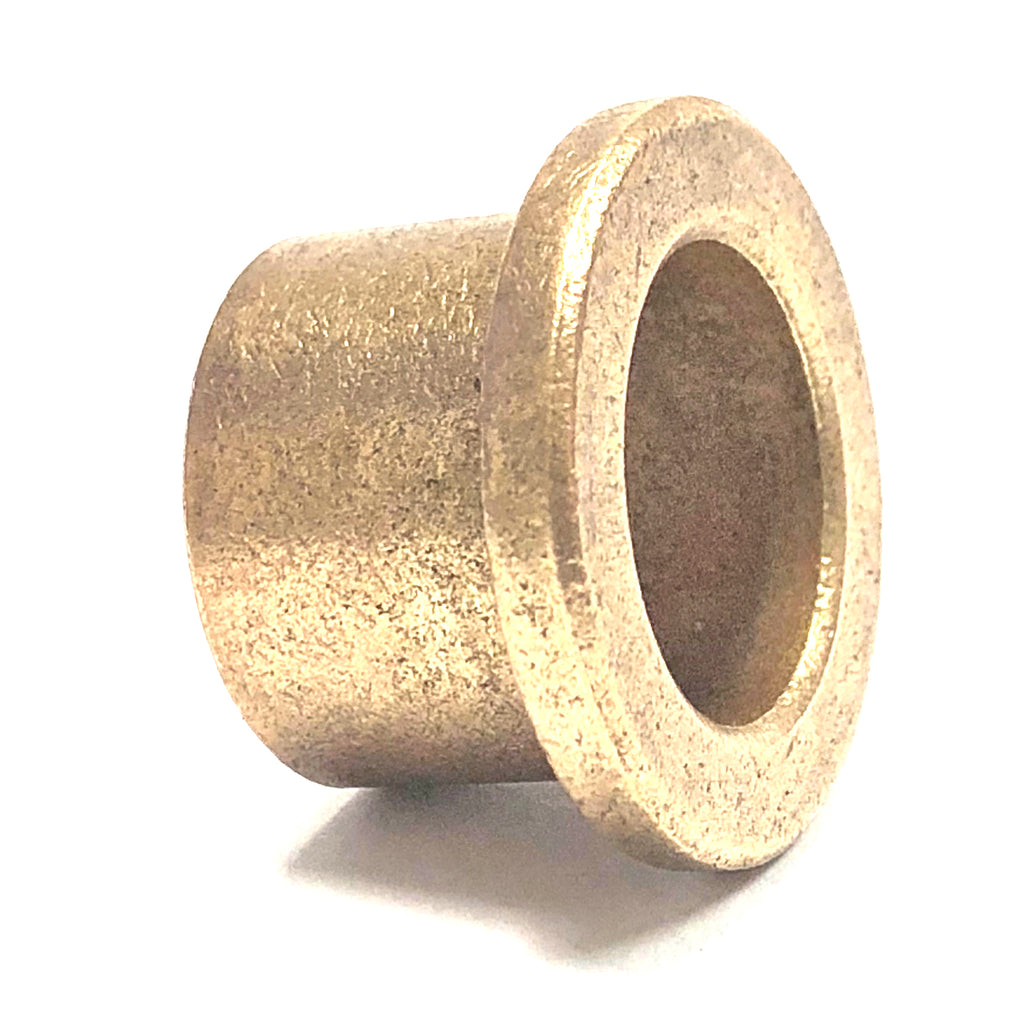

0.75"X1.00"X0.625" Flanged Bronze Bushing Part#EF121610 (0324)

$ 4.08


Item # EF121610, Bronze Flanged Bearings SAE 841

  • Bunting Oil-Filled Bronze Bearings- Stock Bearings- Bunting Bearings offers a complete line of stock plain bearings, flange bearings and washers made of P/M bronze.
  • Bunting sintered bronze stock bearings have long conformed to ASTM chemical and physical properties, and are the first to include all ASTM standard sizes to ASTM recommended dimensions and tolerances.
  • After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation.
  • Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10°F to 220°F.



Nominal Size I.D.

3/4 in

Nominal Size O.D.

1 in

I.D. Min

0.7510 in

I.D. Max

0.7520 in

O.D. Min

1.0030 in

O.D. Max

1.0040 in

Length

5/8 in

Length Tolerance

+/-0.005 in

Flange O.D.

1 1/4 in

Flange O.D. Tolerance

+/-0.005 in

Flange Thickness

3/16 in

Flange Thickness Tolerance

+/-0.005 in

Min. Temperature

10 ºF

Max. Temperature

220 ºF

P Value (Max.)

2000

V Value (Max.)

1200

PV Value (Max.)

50000
