bronze bushing flanged

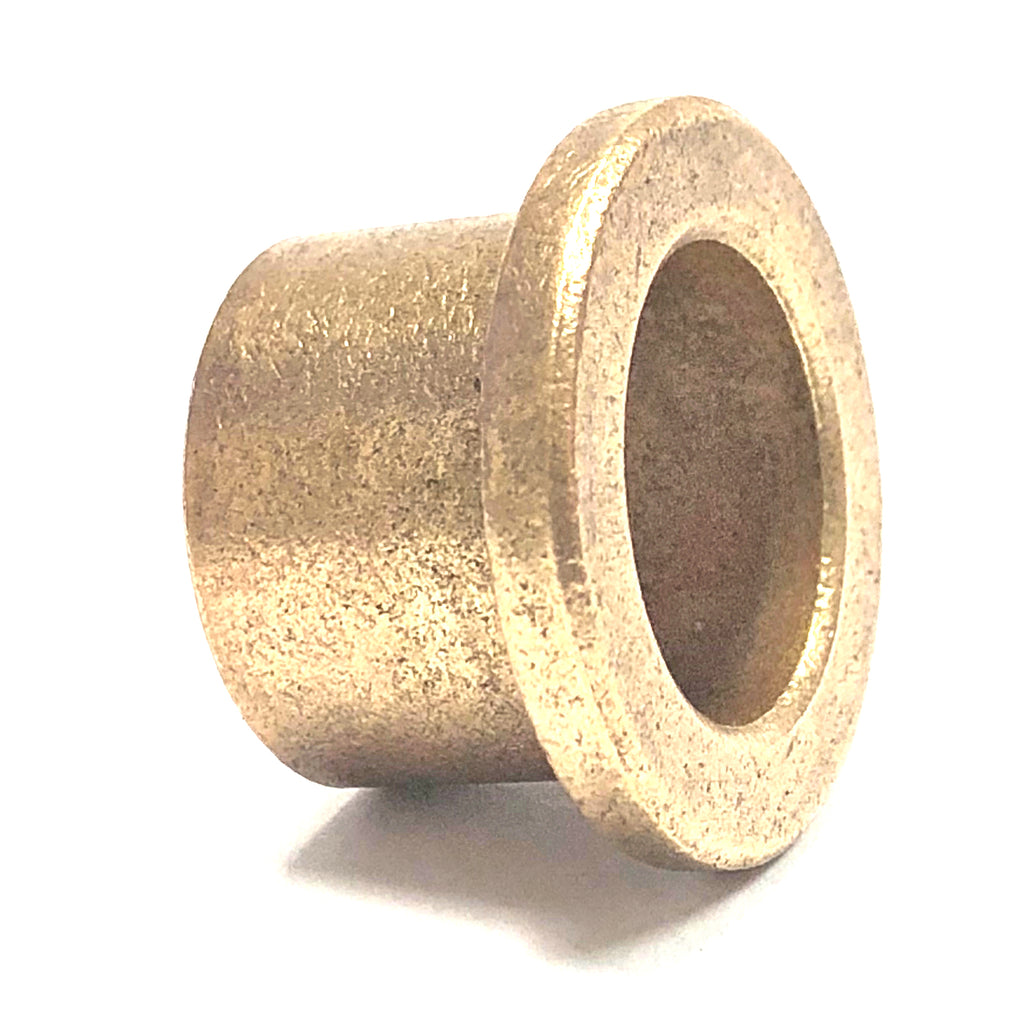

1.25"X1.50"X1.75" Flanged Bronze Bushing Part#EF202428 (0324)

$ 9.44

Item # EF202428, Bronze Flanged Bearings SAE 841

Nominal Size I.D.	1 1/4 in
Nominal Size O.D.	1 1/2 in
I.D. Min	1.2525 in
I.D. Max	1.2535 in
O.D. Min	1.5030 in
O.D. Max	1.5040 in
Length	1 3/4 in
Length Tolerance	+/-0.0075 in
Flange O.D.	1 3/4 in
Flange O.D. Tolerance	+/-0.010 in
Flange Thickness	3/16 in
Flange Thickness Tolerance	+/-0.010 in
Min. Temperature	10 ºF
Max. Temperature	220 ºF
P Value (Max.)	2000
V Value (Max.)	1200
PV Value (Max.)	50000
