4.000"X5.751"X.438" 40108 CRWH1 CR SKF Oil Seal (0324)

4.000"X5.751"X.438" 40108 CRWH1 CR SKF Oil Seal (0324)

$ 63.02

40108

0.494 lb

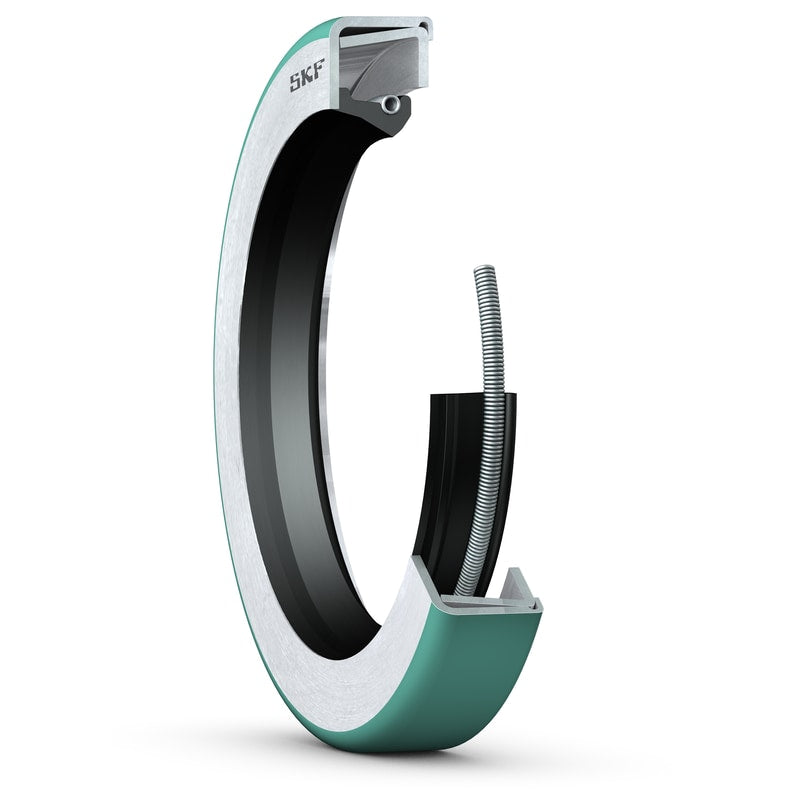

Radial shaft seal with double metal case, SKF Wave lip, for oil or grease

UPC CODE

85311034579

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. CRWH1 seals are designed with a double metal case, an SKF WAVE lip made of elastomer with a higher pumping rate to reduce heat generation, and a garter spring to optimize sealing against the shaft. Most of the seals feature the SKF Bore Tite coating on the outside diameter that helps fill small imperfections in the housing bore.

Performance

Maximum operating temperature	212 °F
Minimum operating temperature	-40 °F
Permissible circumferential speed	2 108.268 ft/min
Rotational speed	2 040 r/min

Attributes

DESIGNED UNIT	Inch
SHAFT DIAMETER	4.000 in
HOUSING BORE DIAMETER	5.751 in
OVERALL WIDTH	0.438 in
SEALING MATERIAL(S)	Nitrile rubber (NBR)
NUMBER OF LIPS	1
SPRING TYPE	Garter spring
SPRING MATERIAL	Carbon steel
CASE MATERIAL	Steel
SOLID / SPLIT	Solid
INSTALLATION TYPE	Housing press fit
LUBRICANT	Oil or Grease
LUG LENGTH	None
DESIGN	CRWH1
