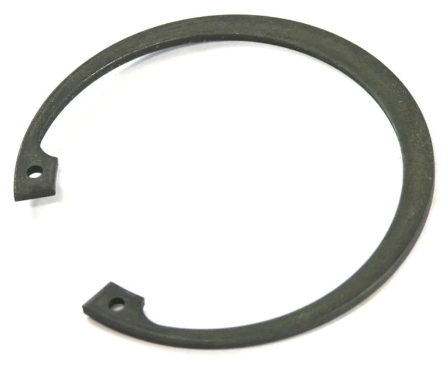

5000-393 Internal Retaining Ring

5000-393 Internal Retaining Ring

5000-393 Internal Retaining Ring

5000-393 Internal Retaining Ring

5000-393 Internal Retaining Ring

$ 6.48

Weight (lbs.): 0.0909

Country of Origin: USA

RoHS Compliant: Yes

HTS Number: 7318240000

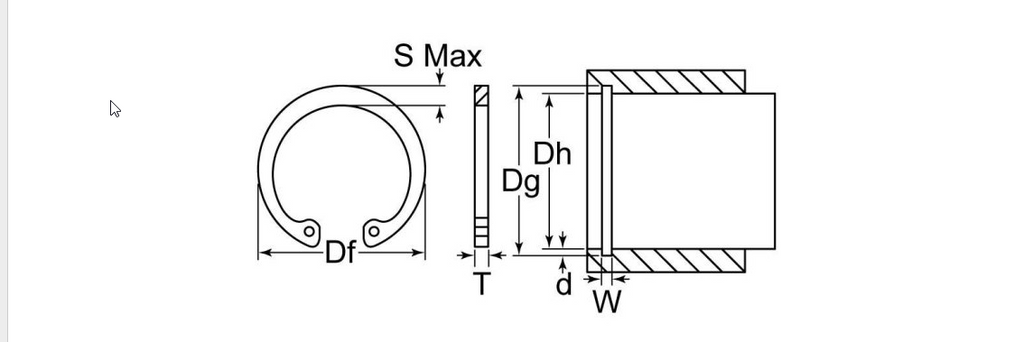

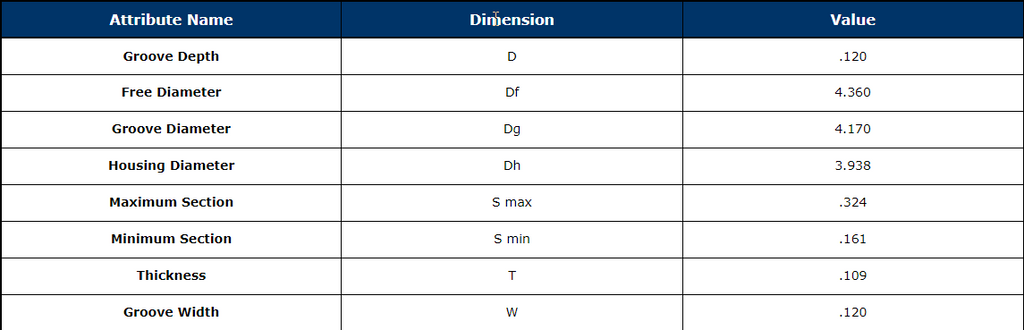

Hole Diameter: 0.125 in

Groove Diameter: 4.170 in

Housing Diameter: 3.938 in

Finish: Phosphate

Material: Carbon Spring Steel

Type: Internal

Style: Stamped

Allowable Corner Chamfers:.099 in

Allowable Corner Radii:.124 in

Clearance Diameter Released in Groove:3.400 in

Edge Margin:.354 in

Free Diameter: 4.360 in

Gap Width Minimum: 0.905 in

Groove Depth: 0.120 in

Groove Diameter to Shaft Concentricity:.006 in

Groove Width:.120 in

Lug Height:.370 in

Maximum Section:.324 in

Minimum Section:.161 in

Maximum Thrust Load:12000 Pound-Force

Clearance Diameter Compressed in Housing:3.170 in

Manufacturer Part Number:HO-393ST PD

Hardness: HRC 44-51

Free Diameter Tolerance:±.065

Groove Diameter Tolerance:±.006

Groove Width Tolerance:+.005/-.000

Thickness Tolerance:±.003

Maximum Section Tolerance:±.008

Housing Diameter Fraction:3-15/16 in

Hole Diameter Tolerance:+.015/-.002

Lug Height Tolerance:±.008

Minimum Section Tolerance:±.008

Military Specification: No
