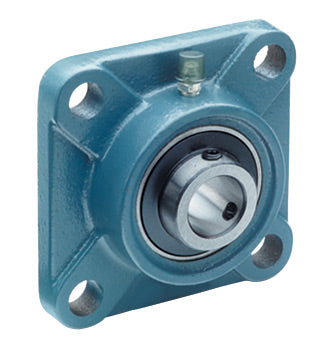

UCF205-15, 15/16" Bore, Set-Screw Locking, 4-Bolt Flange Unit (0525)
$ 24.28
UCF Series - Standard Duty, Set Screw Locking Type
- Standard duty square flange unit, set screw locking
- Cast-iron housing
- Wide inner ring bearing
- Dual heavy-duty slinger type contact seals
- Anti-Rotation device
- Triple lip seals (R3 suffix) optional
| Specifications: | |
|---|---|
| Unit No. | UCF205-15 |
| Bearing Type | Standard duty square flange unit, set screw locking |
| Material | Cast iron housing, AISI 52100 steel insert |
| Shaft Diameter | 0.9375 in |
| Bearing No. | UC205-15 |
| Housing No. | F205 |
| Basic Dynamic Load Rating (Cr) | 3147.33 lbs. |
| Basic Static Load Rating (Cor) | 1764.75 lbs. |
| Weight | 1.79 lbs. |
