12X24X7 mm HMSA10 SKF CR Oil Seal (0324)

Combine sizes in the "Metric Seals"
group to get the QUANTITY DISCOUNT PRICING

12X24X7 HMSA10 RG

0.0185 lb

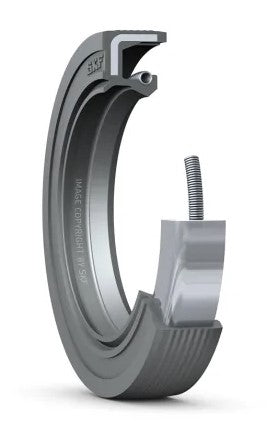

Radial shaft seal with rubber outside diameter and single sealing lip, for oil or grease

UPC CODE

7316572263709

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.

Dimensions

Shaft diameter	12 mm
Housing bore diameter	24 mm
Seal width	7 mm

Performance

Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Permissible circumferential speed	2.05 m/s
Rotational speed	3 240 r/min

Properties

Design	HMSA10
Auxiliary lip	Yes
Sealing lip material	Nitrile rubber (NBR)
Type of outside diameter	Rubber metal reinforced
Unit system	Metric

Logistics

Product net weight	0.004 kg
eClass code	23-07-08-01
UNSPSC code	31181602

Key Attributes
SEALING MATERIAL(S)	Nitrile rubber (NBR)
NUMBER OF LIPS	2
CASE MATERIAL	Rubber-covered steel
SOLID / SPLIT	Solid
DESIGN	HMSA10

Lubrication
LUBRICANT	Oil or Grease

Miscellaneous
SHAFT DIAMETER	12.00 mm
HOUSING BORE DIAMETER	24.00 mm
SPRING TYPE	Garter spring
SPRING MATERIAL	Carbon steel
INSTALLATION TYPE	Housing press fit
LUG LENGTH	None
