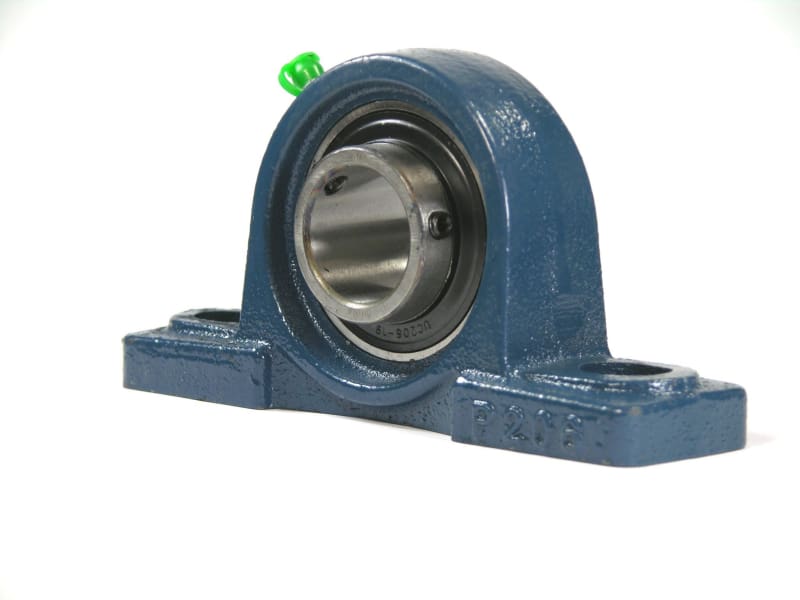

UCP202-10, Tritan brand, 5/8" 2-Bolt Pillow Block

$ 13.93


UCP202-10, 5/8" 2-Bolt Pillow Block

2-Bolt Pillow Block with Setscrew Locking Collar, 5/8" Bore Diameter, Cast Iron, Inch •Two-bolt housing with ball bearing insert for ready-to-mount installation •Cast iron housing and self-aligning chrome alloy steel bearing unit for carrying shafts with radial loads •Relubricatable solid one-piece housing pillow block for maximum strength and rigidity •Setscrew locking collar for secure attachment to guided shaft •Seal and flinger to protect against contaminants and retain lubrication

Dynamic Load Capacity 2,877 lb., Static Load Capacity 1,494 lb., Temp. Range -40 Degrees to 250 Degrees F, Painted Finish, ISO, AFBMA Standards

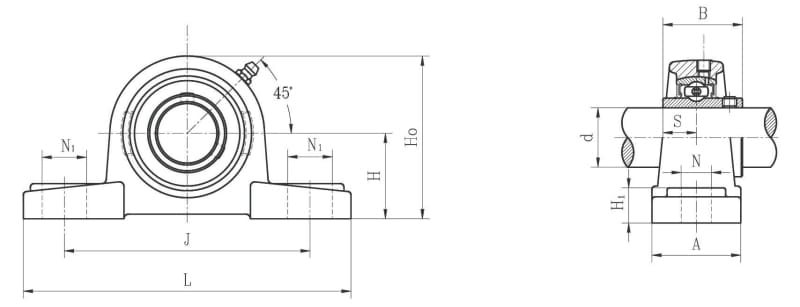

download the dimension & spec sheet for this series

INTERCHANGE
AMI: UCP 202-10
Browning: VPS-210
Dodge: P2B-SC-010
Fafnir: RASC-5/8
Fafnir: YAS-5/8
Link-Belt: P3-U210N
Link-Belt: P3-Y210N
NSK: USP202-10S
NTN: UCP202-010T
Peer: FHSP202-10G
RHP: NP-5/8
Sealmaster: NP-10
