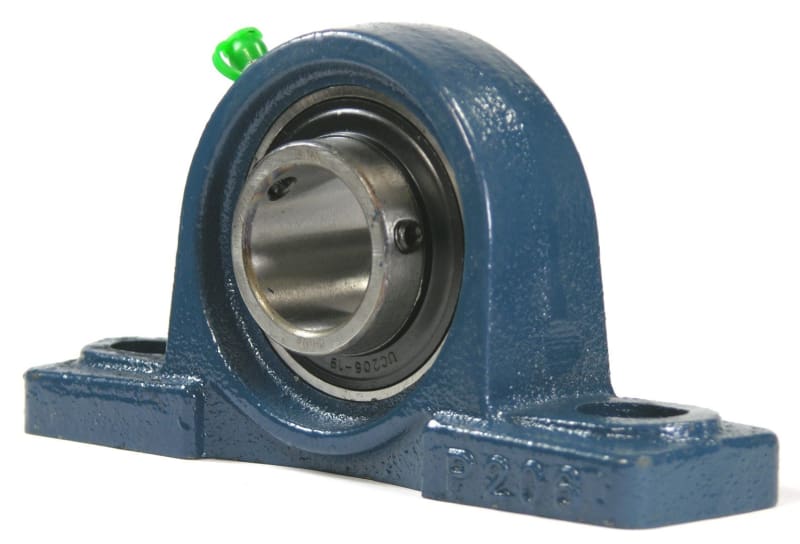

UCP205-25MM, 25mm 2-Bolt Pillow Block

•Cast iron P205 one-piece pillow block housing increases the life of the bearing
•UC205-25 chrome steel bearing for efficient operations at a wide range of speeds
•Dynamic load rating of 14 kN
* Static load rating of 7.85 kN
•Set screw prevents shaft slippage
•25mm inside diameter fits conventional cylindrical shafts

download the dimension & spec sheet for this series

Dimensions
Bore: 25mm
Bolt hole to bolt hole: 4.133 in. (105mm)
Overall length: 5.51 in. (140mm)
Shaft height: 1.437 in. (36.5mm)
Overall height: 2.736 in. (69.5mm)
Bolt hole: .511 in. (13mm)
