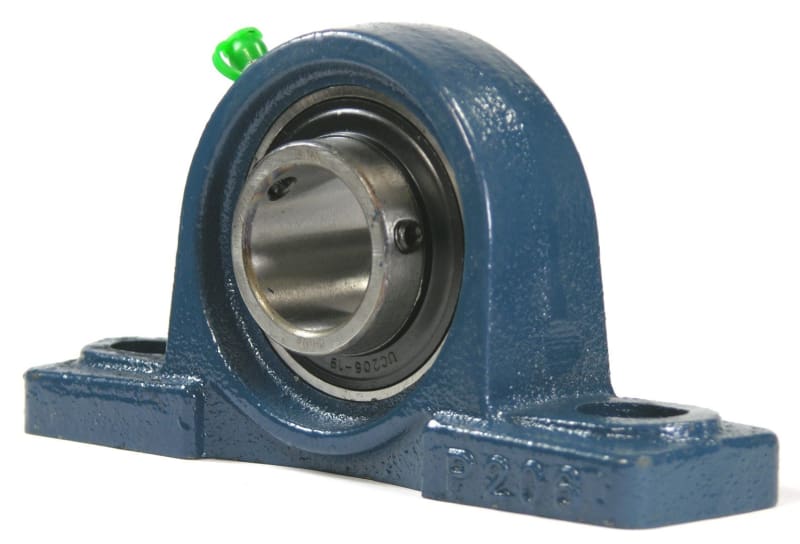

UCP206-20, 1-1/4", 2-Bolt Pillow Block

• BORE DIAMETER : 1.25" (31.75mm)
• WIDTH: 38.1mm
• DYNAMIC LOAD RATING: 4,384 (N)

• STATIC LOAD RATING: 2,540 (N)

• MAXIMUM TEMPERATURE: 250 F
• HOUSING MATERIAL: Cast Iron
• MOUNTING HOLE CENTER: 121mm
• LOCKING TYPE: Set Screws
• BEARING TYPE: Mounted Bearing Unit
• NUMBER OF MOUNTING BOLTS: 2
• BOLT HOLE SIZE: 1/2” (M14)
• OVERALL LENGTH: 160mm
• OVERALL HEIGHT: 84mm
• MOUNTING SURFACE TO CENTERLINE OF SHAFT: 42.86mm
• BEARING MATERIAL: AISI 52100 Chrome Steel
• OVERALL WIDTH: 38.1mm

download the dimension & spec sheet for this series

INTERCHANGE
AMI: UCP 207-20
Browning: VPS-220
Dodge: P2B-SC-104
Fafnir: RASC-1 1/4
Fafnir: YAS-1 1/4
Link-Belt: P3-U220N
Link-Belt: P3-Y220N
NSK: USP207-20S
NTN: UCP207-104T
Peer: FHSP207-20G
RHP: NP-1 1/4
Sealmaster: NP-20
