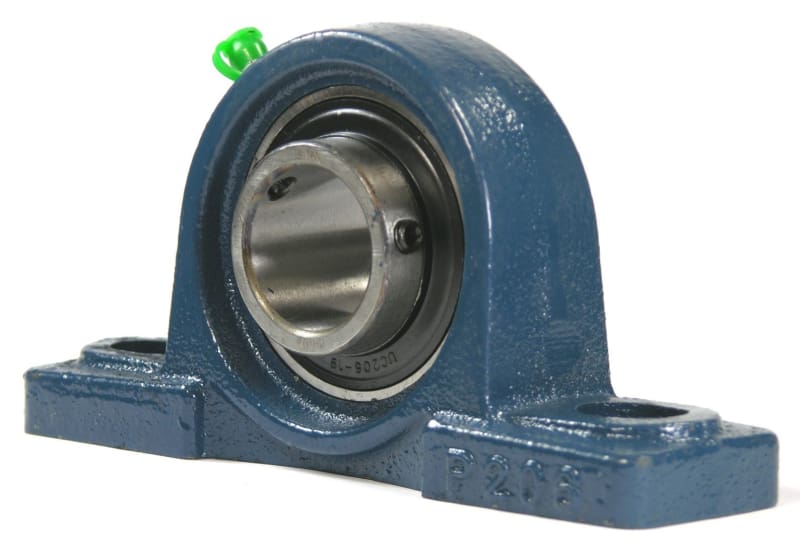

UCP206-30MM, 30mm Bore, Set-Screw Locking, 2-Bolt Pillow Block (0624)
$ 34.04
UCP Series - Standard Duty, Set Screw Locking Type
- Standard duty unit, set screw locking
- One-piece cast iron housing, solid base
- Wide inner ring bearing
- Dual heavy-duty slinger type contact seals
- Grease fitting for adding lubricant
- Anti-Rotation device
- Triple lip seals available on request
| Specifications: | |
|---|---|
| Unit No. | UCP206-30MM |
| Bearing Type | Pillow Block - Standard duty unit, set screw locking |
| Material | Cast iron housing, AISI 52100 steel insert |
| Shaft Diameter | 30 mm |
| Insert No. | UC206-30MM |
| Housing No. | P206 |
| Basic Dynamic Load Rating (Cr) | 4383.77 lbs |
| Basic Static Load Rating (Cor) | 2540.34 lbs |
| Weight | 2.73 lbs |
Bolt hole to bolt hole: 4.763 in. (121mm)
Overall length: 6.5 in. (165mm)
Shaft height: 1.689 in. (42.9mm)
Overall height: 3.228 in. (82mm)
Bolt hole: .669 in. (17mm)
