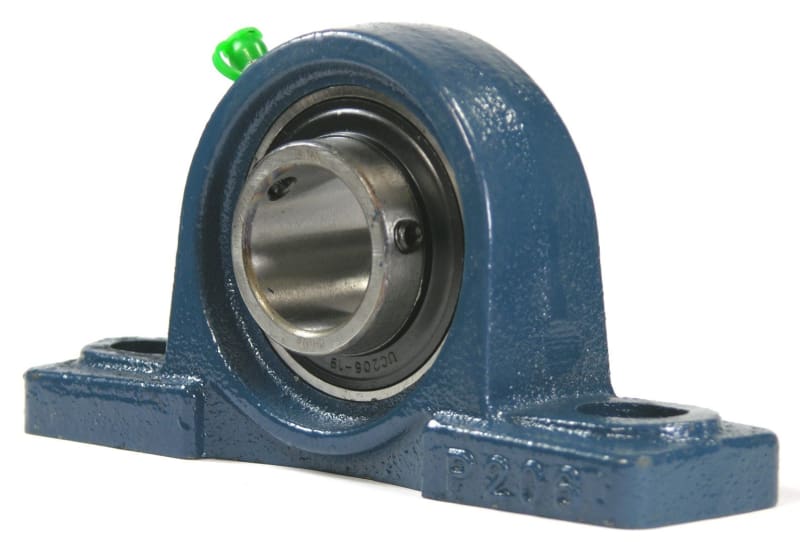

UCP207-20, 1-1/4" 2-Bolt Pillow Block

$ 21.87


UCP207-20, 1-1/4" 2-Bolt Pillow Block

Mounting Style: Two-Bolt Base

Overall width: 1-15/16 in

Bore diameter:1.2500 in
Radial dynamic load capacity: 5820 lbf
Bore type: Round Radial static load capacity:3460 lbf
Base to bore centerline: 1.8750 in
Base width:1-7/8 in
Duty type: Normal Duty
Bolt center-to-center length: 4-11/16" to 5-5/16"
Housing material: Cast Iron
Bolt size:1/2"
Locking device: Set Screw
Lubrication type: Pre-Lubricated w/Grease
Re-Lubrication  Grease Fitting (included)
Seal type: Contact with Slinger
Series:UCP200
Expansion type: Non-Expansion Bearing (Fixed)
Replacement bearing unit: UC207-20
Overall length: 6.5625 in
Overall height: 3.6875 in

 download the dimension & spec sheet for this series


INTERCHANGE EQUIVALENTS
AMI: UCP 207-20
Browning: VPS-220
Dodge: P2B-SC-104
Fafnir: RASC-1 1/4
Fafnir: YAS-1 1/4
Link-Belt: P3-U220N
Link-Belt: P3-Y220N
NSK: USP207-20S
NTN: UCP207-104T
Peer: FHSP207-20G
RHP: NP-1 1/4
Sealmaster: NP-20
