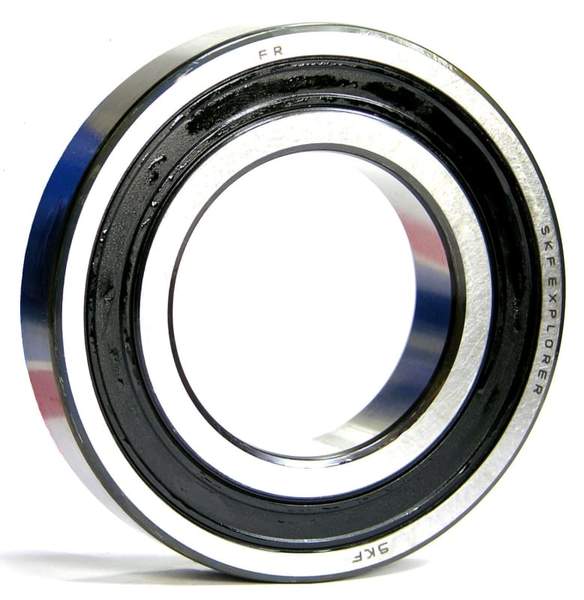

6202-2RSL C3 SKF Radial Ball Bearing w/ 2 Light Contact Seals (0324)

$ 7.59


6202-2RSL C3 SKF radial ball bearing with two light contact seals for high speed performance.

DIMENSIONS

d
15 mm
Bore diameter
D
35 mm
Outside diameter
B
11 mm
Width
d2
 18.6 mm
Recess diameter
D2
 30.5 mm
Recess diameter
r1,2
min. 0.6 mm
Chamfer dimension
Abutment dimensions - 6202-2RSL

ABUTMENT DIMENSIONS

da
min. 19.2 mm
Diameter of shaft abutment
da
max. 19.4 mm
Diameter of shaft abutment
Da
max. 30.8 mm
Diameter of housing abutment
ra
max. 0.6 mm
Radius of shaft or housing fillet

CALCULATION DATA

C
8.06 kN
Basic dynamic load rating
C0
3.75 kN
Basic static load rating
Pu
0.16 kN
Fatigue load limit
43 000 r/min
Reference speed
22 000 r/min
Limiting speed
kr
0.025
Minimum load factor
f0
13
Calculation factor
