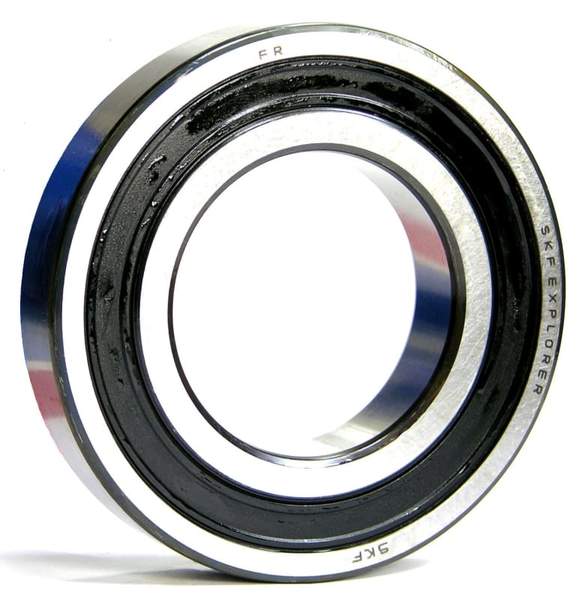

6203-2RSL C3 SKF Radial Ball Bearing w/ 2 Light Contact Seals (0324)

$ 9.55


6203-2RSL C3 SKF radial ball bearing with two light contact, low friction seals for high speed performance.

Technical specification

Dimensions - 6203-2RSL

DIMENSIONS

d
17 mm
Bore diameter
D
40 mm
Outside diameter
B
12 mm
Width
d2
 21.75 mm
Recess diameter
D2
 34.98 mm
Recess diameter
r1,2
min. 0.6 mm
Chamfer dimension
Abutment dimensions - 6203-2RSL

ABUTMENT DIMENSIONS

da
min. 21.2 mm
Diameter of shaft abutment
da
max. 22 mm
Diameter of shaft abutment
Da
max. 35.8 mm
Diameter of housing abutment
ra
max. 0.6 mm
Radius of shaft or housing fillet

CALCULATION DATA

C
9.95 kN
Basic dynamic load rating
C0
4.75 kN
Basic static load rating
Pu
0.2 kN
Fatigue load limit
38 000 r/min
Reference speed
19 000 r/min
Limiting speed
kr
0.025
Minimum load factor
f0
13
Calculation factor

MASS

0.067 kg
Mass bearing

TOLERANCE CLASS

P6
Dimensional tolerances
P5
Radial run-out
