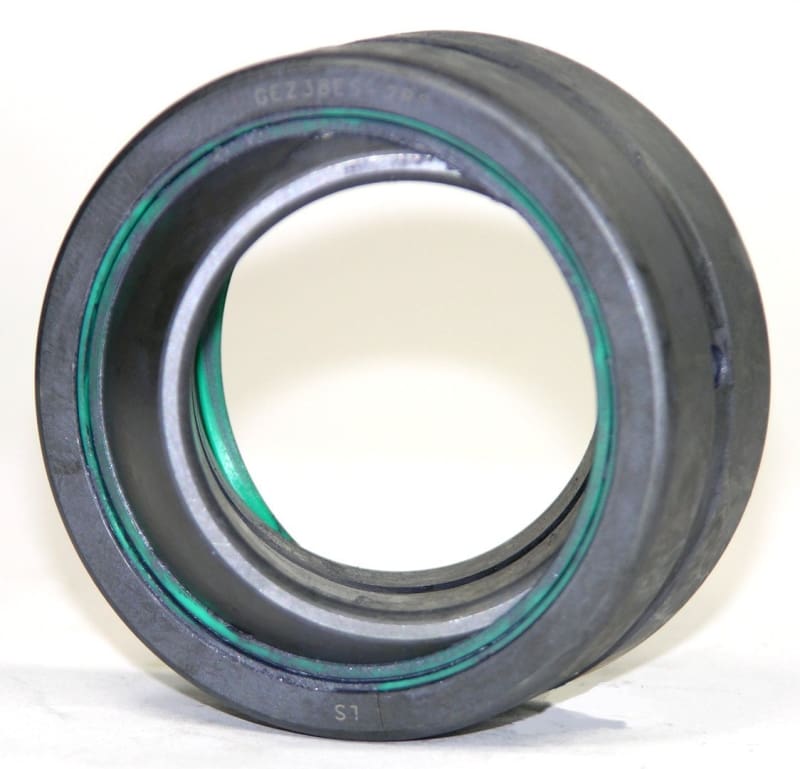

GEZ-100-ES-2RS Plain Spherical Bearing, Sealed

$ 13.42


GEZ-100-ES-2RS Plain Spherical Bearing, Sealed Wide race cross-section provides high misalignment adjustment Chrome steel race and ball for durability and resistance to deformity under heavy loads Lubrication grooves and holes in race direct grease into bearing Rubber seals on both sides of the bearing keep the lubricant in and contaminants out 1-3/8" inside diameter, a 2-3/16" outside diameter, and a 1-3/16" depth

Spherical Plain Bearings; Type: Spherical Plain; Bore Diameter: 1.0000 (Decimal Inch); Dynamic Load Capacity: 12,600 (Pounds); Static Load Capacity: 37,350.00 (Pounds); Outside Diameter (Decimal Inch): 1.6250; Thickness: 0.8750 (Decimal Inch)
Type
Spherical Plain
Bore Diameter (Decimal Inch)
1.0000
Dynamic Load Capacity (Pounds)
12600
Static Load Capacity (Pounds)
37350.00
Outside Diameter (Decimal Inch)
1.6250
Thickness (Decimal Inch)
0.8750
