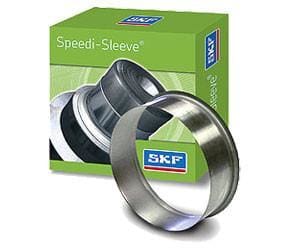

Type of Product: Speedi-Sleeve Standard Product - Inch
Nominal Shaft Diameter: 2-1/8"
Width on Shaft: 25/32"
Lip Material: N/A
Construction Description: Ultra-thin wear sleeve made from stainless steel
Typical Application:Quick, easy, effective alternative to resizing, metalizing, or replacing a damaged surface
Shaft Range for Speedi-Sleeve: 2.124" - 2.130""Y"
Width (Overall Width) For Speedi-Sleeve: 15/16""D" (Flange Diameter)
For Speedi-Sleeve: 2.422"
Additional Features: Outside surface forms an ideal sealing surface without the need for additional surface preparation. Fast shaft repair with included installation tool, often without changing the current seal.
Trade / Brand Name: SKF Speedi-Sleeve
Weight Ea. (Lbs): 0.220
Catalog Type: Speedi Sleeve - Inch Type Series: 2-1/8"
Features:
• When a new seal cannot compensate for excessive damage in small diameter shafts, select a CR Speedi-Sleeve
• This ultra-thin wear sleeve provides a snug, leak-proof fit on shafts
• Excessive water, dirt, heat, lack of lubrication or high shaft speed can all cause a sealing lip to groove the shaft and ultimately create a leak
• Speedi-Sleeve is the cost-effective alternative to resizing, metalizing or replacing the severely damaged surface
• It installs easily, without excessive machine downtime.
