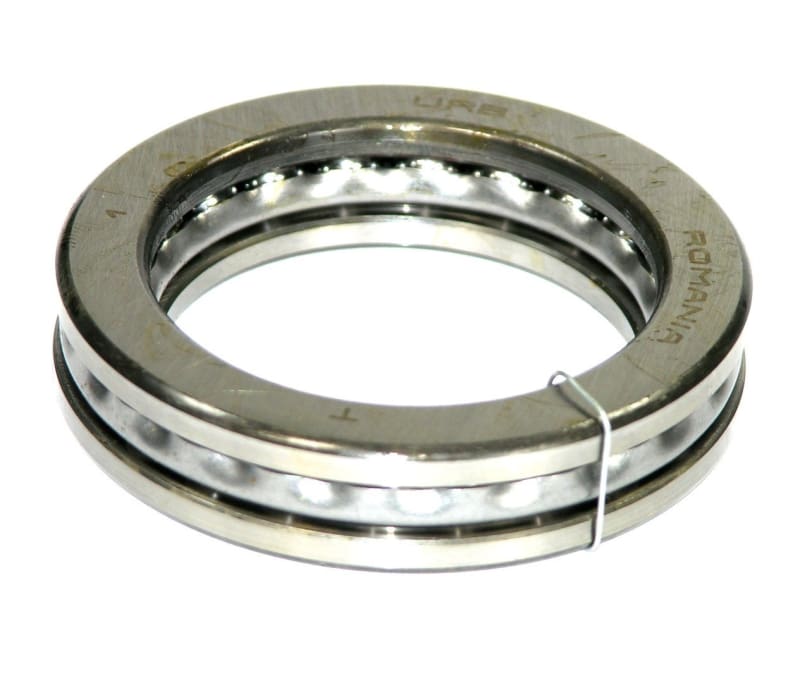

51105 Thrust Ball Bearing

FEATURES
•Single direction, deep-groove thrust ball bearing for applications that support heavy axial loads in one direction
•Open bearing for lubrication applied in place
•Through-hardened chromium steel for durability and resistance to deformity under heavy loads
•Pressed steel retainer evenly spaces rollers for reduced friction, vibration, and noise
•Grooved raceways for higher speeds and thrust-bearing capacity than flat washers

SPECIFICATIONS
Bore Diameter: 25 mm
Dynamic Load Capacity: 19700 Newtons
Separator Material Type: Pressed Steel
Max RPM: 4,800 RPM
Outside Diameter: 42 mm
Overall Height: 11 mm
Static Load Capacity: 37000 Newtons

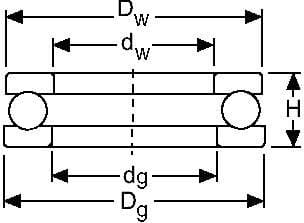

Drawing Reference Dims
dw:25mm
dg:26mm
Dw:42mm
Dg:42mm
H:11mm
