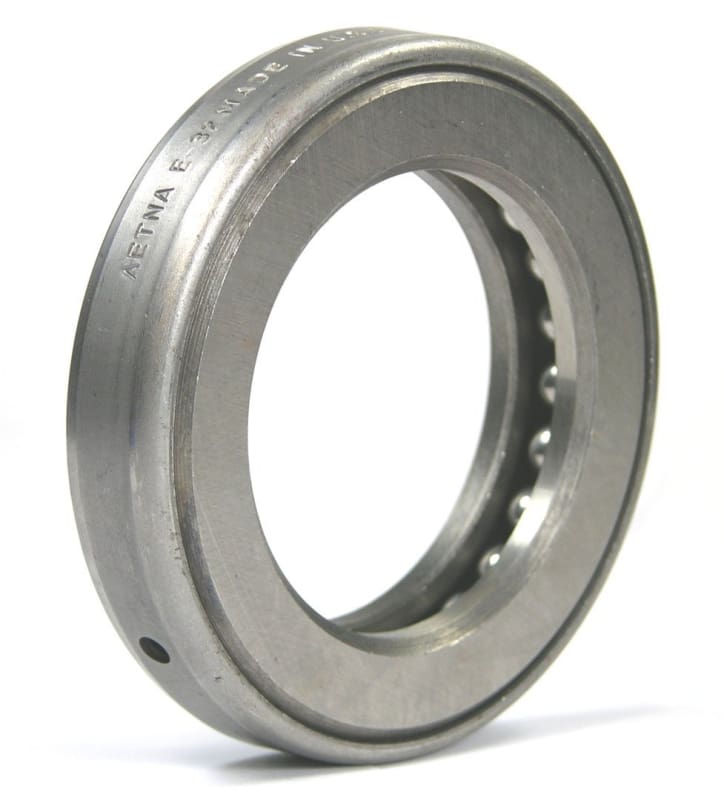

E-26 Thrust Ball Bearing

$ 38.00

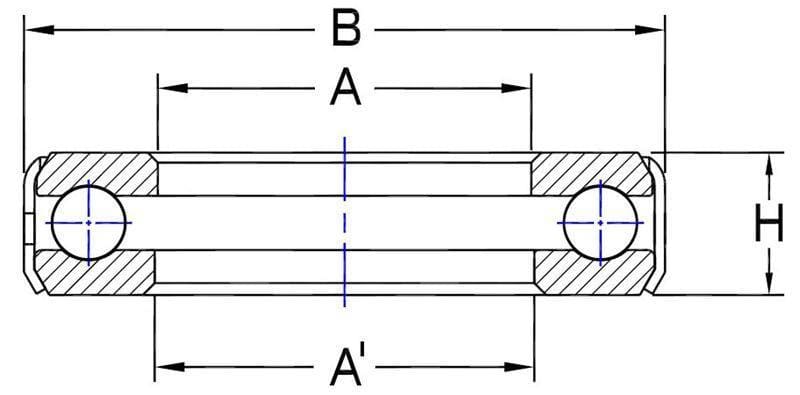

E-26, Aetna, Thrust Ball Bearing Bore Size 2 1/16 in Small Bore Diameter (A) Tolerance +0.006 in +0.008 in Large Bore Diameter (A') 2 1/8 in Large Bore Diameter (A') Tolerance ± 0.010 in Outside Diameter 3 11/32 in Outside Diameter (B) Tolerance ± 0.010 in Height (H) 13/16 in Height (H) Tolerance ± 0.005 in Ball Diameter 3/8 in Max. Fillet Radius2 0.060 in Bearing Weight 0.90 lbs Thrust Load Capacity (Static) 21960 lbs Thrust Load Capacity (at 500 rpm) 2935 lbs Max. Permissible Speed 1778 rpm Bearing Number E-26-MTO AFBMA Code Number 33TB030VAK
