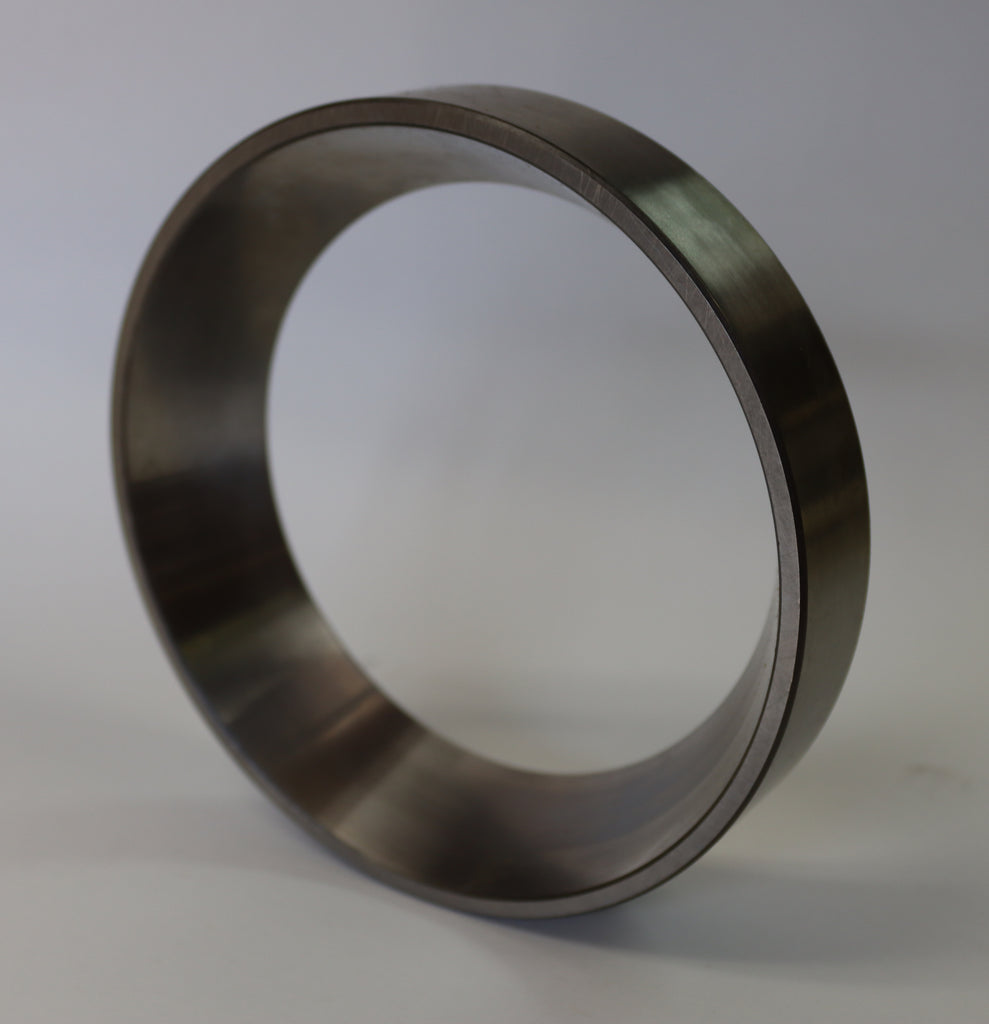

07210X Tapered Roller Bearing Cup (0726)

07210X Tapered Roller Bearing Cup (0726)

$ 26.80

Key Dimensions

Cup Part Number	07210X
O.D. (D)	2 in. / 50.8 mm
Outer Ring Width (C)	0.5000 in. / 12.700 mm
e Factor ¹	0.4
K Factor ²	1.45
Y Factor ³	1.49

Other Dimensions

Weight	0.10 Kg. / 0.3 lb
Max Housing Fillet Radius⁴	0.06 in. / 1.52 mm
Housing Backing Shoulder Dia. - Frontface (Da)	1.89 in. / 48.01 mm
Housing Backing Shoulder Dia. - Backface (Db)	1.75 in. / 44.45 mm

Factors

G1 Factor	7.6
G2 Factor	7.1
Geometry Factor (Cg)⁵	0.0509

¹ These factors apply for both inch and metric calculations.
² These factors apply for both inch and metric calculations.
³ These factors apply for both inch and metric calculations.
⁴ These maximum fillet radii will be cleared by the bearing corners.
Brand: ZWZ (or other China mfg.)
