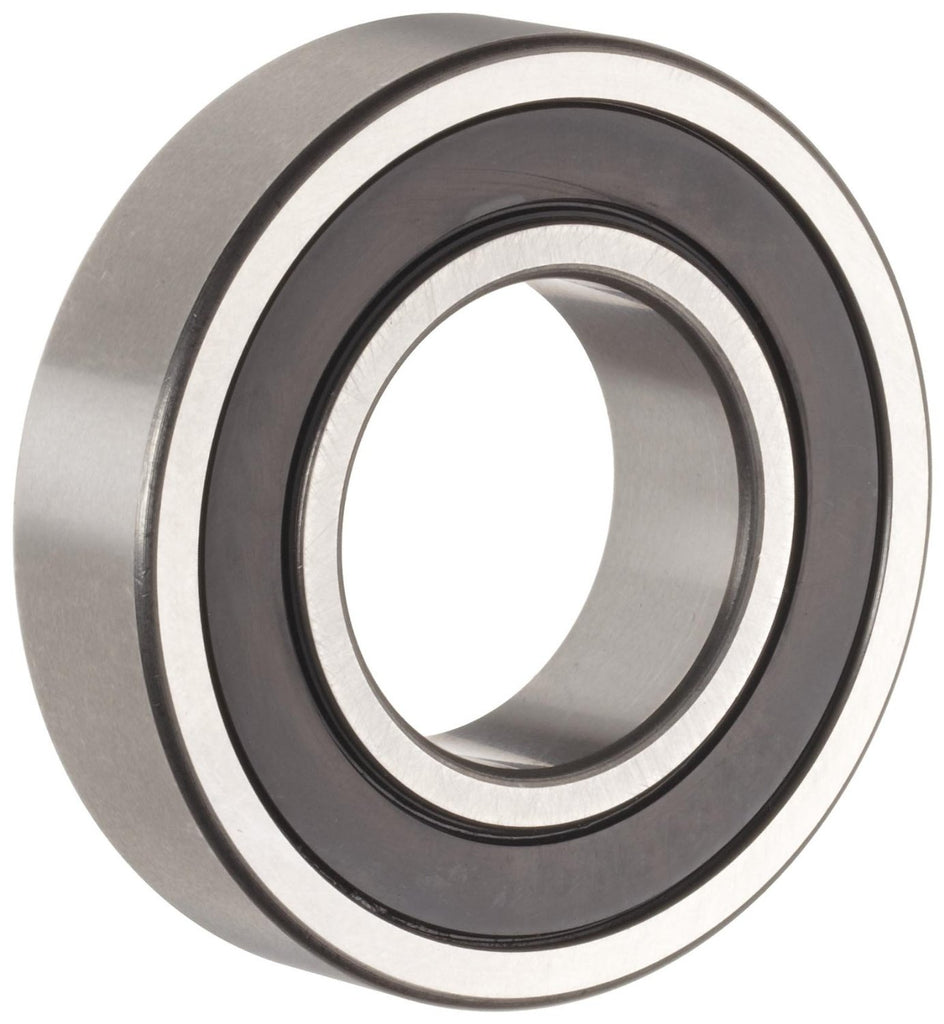

1602-2RS, 1/4" I.D. X 11/16" O.D. Sealed Radial Ball Bearing
$ 1.55
1602-2RS, Inch Dimension Deep Groove Ball Bearing
Precision ground bearings designed to be interchangeable with traditional semi-ground inch series bearings. These ABEC-1 tolerance bearings have precision ground deep-groove races on both the inner ring and outer ring, which enables them to sustain moderate axial loads as well as high radial loads. Balls are separated by a pressed steel cage.
Imported by well known industrial wholesaler Bearings Limited, you have the assurance and guarantee that these bearings meet or exceed the current and published ABEC-1 standards for dimensional tolerance, speed rating and load capacity.
Precision ground bearings designed to be interchangeable with traditional semi-ground inch series bearings. These ABEC-1 tolerance bearings have precision ground deep-groove races on both the inner ring and outer ring, which enables them to sustain moderate axial loads as well as high radial loads. Balls are separated by a pressed steel cage.
Imported by well known industrial wholesaler Bearings Limited, you have the assurance and guarantee that these bearings meet or exceed the current and published ABEC-1 standards for dimensional tolerance, speed rating and load capacity.
- Bearing Type: Double Sealed

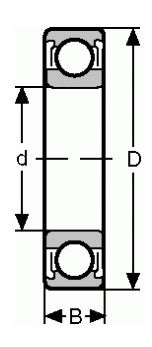

- Bore Dia.: 0.25"
- Bore Tolerance: +0/-0.0003"
- Outside Dia.: 0.6875"
- Outside Dia. Tolerance: +0/-0.0003"
- Width: 0.3125"
- ABEC Tolerance: 1
- Dynamic Load Capacity: 491 lb.
- Static Load Capacity: 194 lb.
- Max. RPM: 5,000
- Temp. Range: -40 Degrees to 350 Degrees F
- Bearing Material: 52100 Chrome Steel Alloy
- Cage Material: Pressed Steel
- Seal Material: Synthetic Rubber
- Lubrication: Polyrex EM Grease
- Industry Number: 1602-2RS
- BL Part No.: 1602 2RS PRX/Q BL
- Packaging: Bulk
- Country of Origin: China/Other
