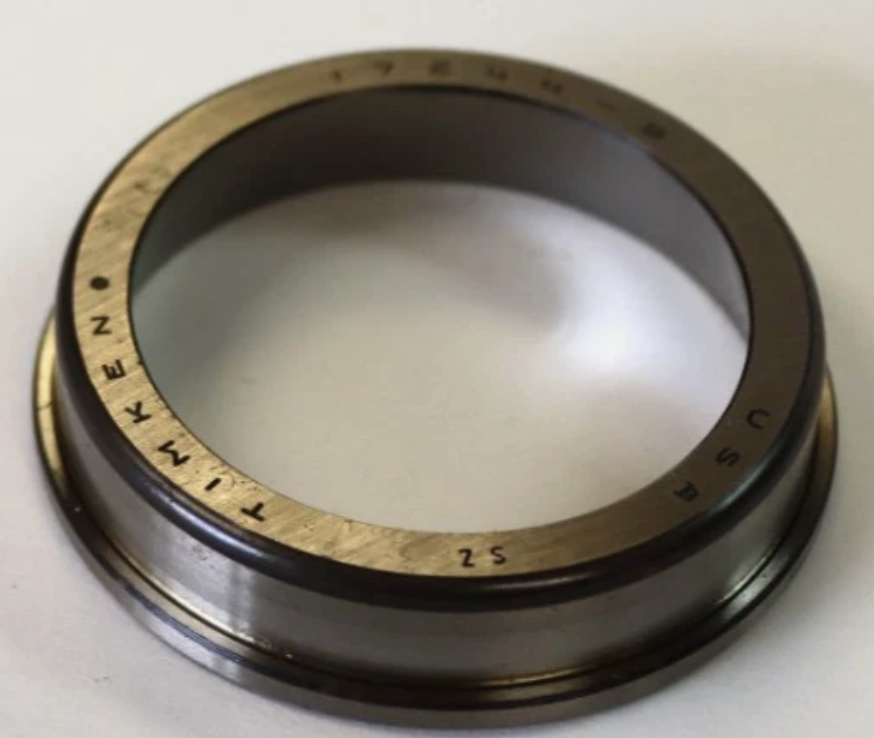

17244-B Timken Tapered Roller Bearing Flanged Cup (0826)

17244-B Timken Tapered Roller Bearing Flanged Cup (0826)

17244-B Timken Tapered Roller Bearing Flanged Cup (0826)

17244-B Timken Tapered Roller Bearing Flanged Cup (0826)

$ 49.00

Key Dimensions

Cup Part Number	17244-B
O.D. (D)	2.4409 in./61.999 mm
Outer Ring Width (C)	0.5625 in./14.288 mm
e Factor ¹	0.38
K Factor ²	1.53
Y Factor ³	1.57

Other Dimensions

Weight	0.3 Kg./0.7 lb
Outer Ring Flange O.D.(D1)	2.5930 in./65.862 mm
Outer Ring Flange Width (C2)	0.14 in./3.556 mm
Max Housing Fillet Radius⁴	0.06 in./1.5 mm
Housing Backing Shoulder Dia. - Frontface (Da)	2.34 in./58.93 mm
