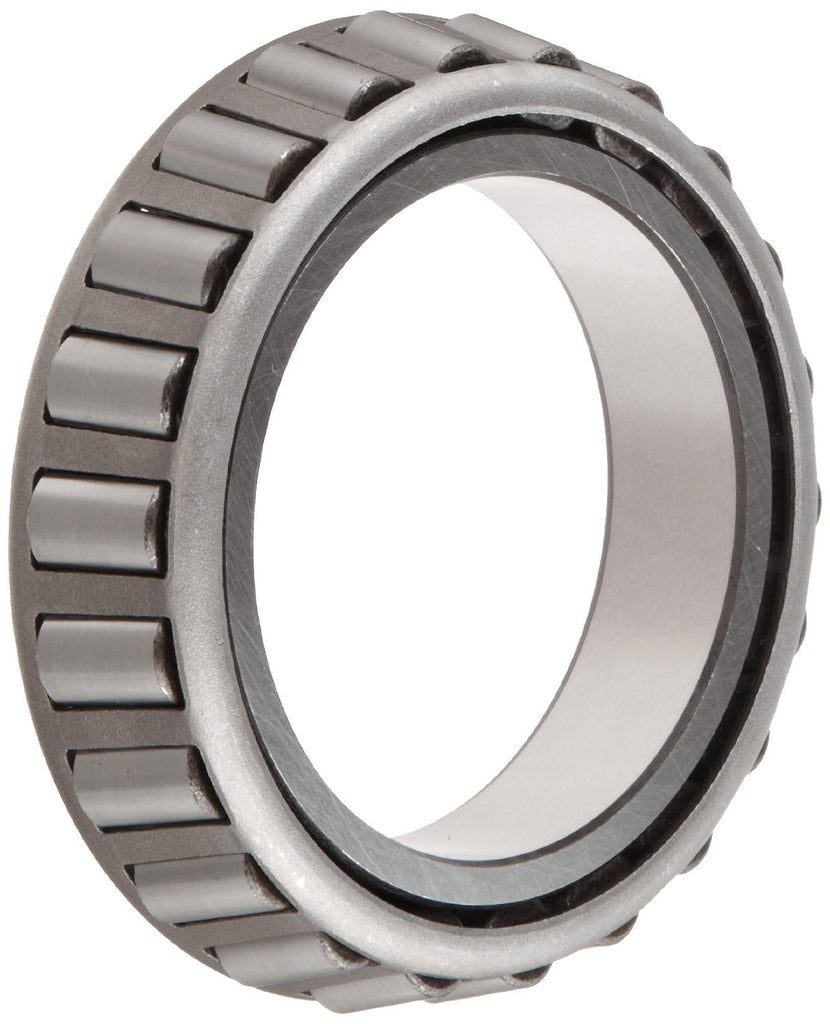

18590 Koyo Tapered Roller Bearing Cone (0826)

18590 Koyo Tapered Roller Bearing Cone (0826)

$ 31.00

Key Dimensions

Cone Part Number

 18590

Bore (d)

 1 5/8 in41.275 mm

Inner Ring Width (B)

 0.6875 in17.463 mm

Dynamic Radial Load Rating - 1M Revs (C1) 1

 11400 lbf./ 50800 N

Dynamic Radial Load Rating - 90M Revs (C90) 2

 2960 lbf./ 13200 N

K Factor 3

 1.67

Other Dimensions

Net Weight

 0.6 lb./ 0.3 Kg

Effective Center Location4

 -0.11 in./ -2.8 mm

Max Shaft Fillet Radius5

 0.14 in./ 3.560 mm

Shaft Backing Shoulder Diameter - Frontface (da)

 1.81 in. / 46 mm

Shaft Backing Shoulder Diameter - Backface (db)

 2.09 in./ 53 mm

Cage Location rel. to BF (Aa)

 -0.01 in./ -0.3 mm

Cage Location rel. to FF (Ab)

 0.08 in./ 2 mm

Ratings

Dynamic Axial Rating - 90M Revs (Ca90)6

 1770 lbf./ 7890 N

Static Radial Load Rating (CO)

 13100 lbf./ 58100 N
