> Products > 18590 Timken Tapered Roller Bearing Cone (0826)
26884, Timken Tapered Roller Bearing Cone
26884, Timken Tapered Roller Bearing Cone

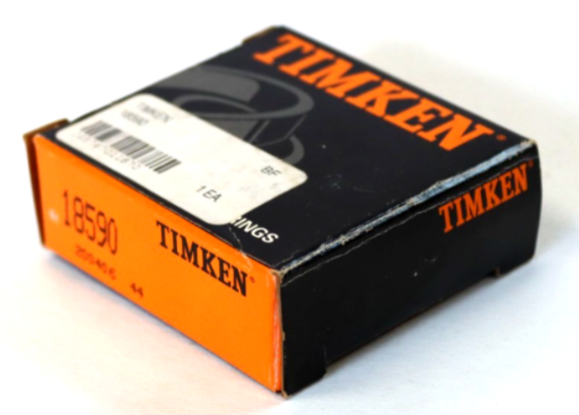

18590 Timken Tapered Roller Bearing Cone (0826)

18590 Timken Tapered Roller Bearing Cone (0826)

$ 31.40

Key Dimensions

Cone Part Number

 18590

Bore (d)

 1 5/8 in41.275 mm

Inner Ring Width (B)

 0.6875 in17.463 mm
Dynamic Radial Load Rating - 1M Revs (C1) 1 11400 lbf50800 N
Dynamic Radial Load Rating - 90M Revs (C90) 2 2960 lbf13200 N
K Factor 3 1.67

Other Dimensions

Net Weight

 0.6 lb0.3 Kg

Effective Center Location4

 -0.11 in-2.8 mm

Max Shaft Fillet Radius5

 0.14 in3.560 mm

Shaft Backing Shoulder Diameter - Frontface (da)

 1.81 in46 mm

Shaft Backing Shoulder Diameter - Backface (db)

 2.09 in53 mm

Cage Location rel. to BF (Aa)

 -0.01 in-0.3 mm

Cage Location rel. to FF (Ab)

 0.08 in2 mm

Ratings

Dynamic Axial Rating - 90M Revs (Ca90)6

 1770 lbf7890 N

Static Radial Load Rating (CO)

 13100 lbf58100 N
