2.25"X3.35"X.438", 22493 CRWHA1 SKF CR Oil Seal (0926)

$ 32.51

22493

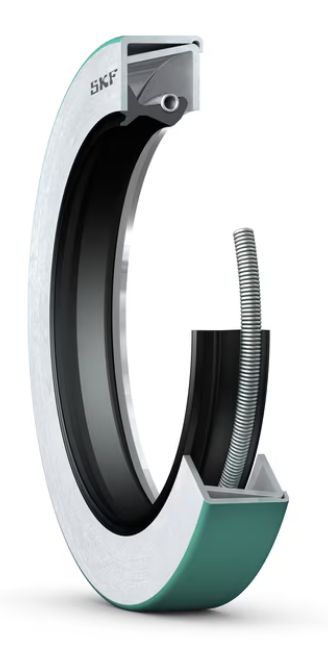

Radial shaft seal with double metal case, SKF Wave lip and auxiliary, non-contacting lip, for oil or grease

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. CRWHA1 seals are designed with a double metal case, an SKF WAVE lip made of elastomer with a higher pumping rate to reduce heat generation, a garter spring to optimize sealing against the shaft, and a dust lip to improve contamination exclusion. Most of the seals feature the SKF Bore Tite coating on the outside diameter that helps fill small imperfections in the housing bore.

For oil or grease
With garter spring
WAVE lip creates higher pumping rate
WAVE lip has less friction between shaft and lip

WAVE lip has a lower temperature at the contact point

Dimensions

Shaft diameter	2.25 in
Housing bore diameter	3.35 in
Seal width	0.4382 in

Performance

Maximum operating temperature	212 °F
Minimum operating temperature	-40 °F
Permissible circumferential speed	1 650 ft/min
Rotational speed	2 820 r/min
Limiting speed	2 820 r/min

Properties

Design	CRWHA1
Auxiliary lip	Yes
Sealing lip material	Nitrile rubber (NBR)
Type of outside diameter	Metal-cased with sealant coating on the outside diameter
Unit system	Inch

Logistics

Product net weight	0.14 lb
eClass code	23-07-08-01
UNSPSC code	31181602
