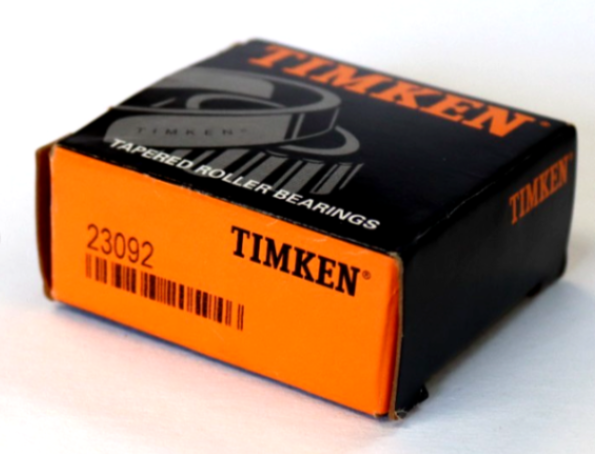

23092 Timken Tapered Roller Bearing Cone (0826)
23092 Timken Tapered Roller Bearing Cone (0826)
26884, Timken Tapered Roller Bearing Cone

23092 Timken Tapered Roller Bearing Cone (0826)

$ 58.90

Key Dimensions

Cone Part Number

 23092

Bore (d)

 15/16 in. / 23.813 mm

Inner Ring Width (B)

 0.8450 in. / 21.463 mm
Dynamic Radial Load Rating - 1M Revs (C1) 1 12300 lbf. / 54600 N
Dynamic Radial Load Rating - 90M Revs (C90) 2 3180 lbf. / 14200 N
K Factor 3 0.8

Other Dimensions

Net Weight

 1 lb. / 0.4 Kg
Effective Center Location4 -0.09 in. / -2.3 mm
Max Shaft Fillet Radius5 0.06 in. / 1.5 mm

Shaft Backing Shoulder Diameter - Frontface (da)

 1.36 in. / 34.5 mm

Shaft Backing Shoulder Diameter - Backface (db)

 1.52 in. / 38.5 mm

Cage Location rel. to BF (Aa)

 0.12 in. / 3 mm

Cage Location rel. to FF (Ab)

 0.1 in. / 2.5 mm

Ratings

Dynamic Axial Rating - 90M Revs (Ca90)6 3990 lbf. / 17700 N

Static Radial Load Rating (CO)

 12500 lbf. / 55800 N

Factors

Geometry Factor (Cg)7 0.070
  • 1 Based on 1 x 106 revolutions L10 life, for the ISO life calculation method.
  • 2 Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values.
  • 3 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
  • 4 Negative value indicates effective center inside cone backface.
  • 5 These maximum fillet radii will be cleared by the bearing corners.
  • 6 Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values for a single-row, C90(2) is the two-row radial value.
  • 7 Geometry constant for Lubrication Life Adjustment Factor a3l.
