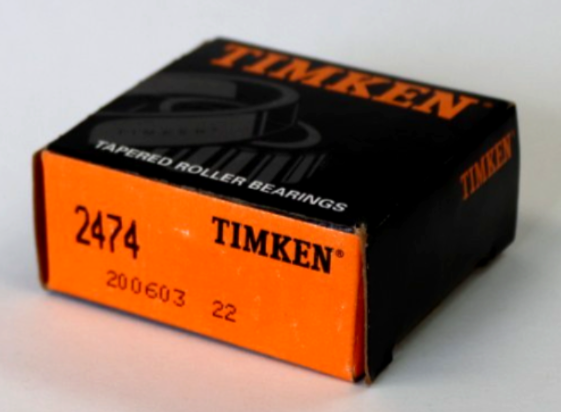

2474 Timken Tapered Roller Bearing Cone (0826)

2474 Timken Tapered Roller Bearing Cone (0826)

$ 59.54

Key Dimensions

Cone Part Number

 2474

Bore (d)

 1 1/8 in./28.575 mm

Inner Ring Width (B)

 0.9375 in./23.813 mm

Dynamic Radial Load Rating - 1M Revs (C1) 1

 15200 lbf./67600 N

Dynamic Radial Load Rating - 90M Revs (C90) 2

 3940 lbf./17500 N

K Factor 3

 1.72

Other Dimensions

Weight

 0.9 lb./0.4 Kg

Effective Center Location4

 -0.26 in./-6.6 mm

Max Shaft Fillet Radius5

 0.03 in./0.760 mm

Shaft Backing Shoulder Diameter - Frontface (da)

 1.38 in./35 mm

Shaft Backing Shoulder Diameter - Backface (db)

 1.42 in./36 mm

Cage Location rel. to BF (Aa)

 0.01 in./0.3 mm

Cage Location rel. to FF (Ab)

 0.04 in./1 mm

Ratings

Dynamic Axial Rating - 90M Revs (Ca90)6 2290 lbf./10200 N

Static Radial Load Rating (CO)

 16500 lbf./73300 N

Factors

G1 Factor

 18.8

G2 Factor

 10.5

Geometry Factor (Cg)7

 0.0652
  • 1 Based on 1 x 106 revolutions L10 life, for the ISO life calculation method.
  • 2 Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values.
  • 3 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
  • 4 Negative value indicates effective center inside cone backface.
  • 5 These maximum fillet radii will be cleared by the bearing corners.
  • 6 Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values for a single-row, C90(2) is the two-row radial value.
  • 7 Geometry constant for Lubrication Life Adjustment Factor a3l.
