26884, Timken Tapered Roller Bearing Cone

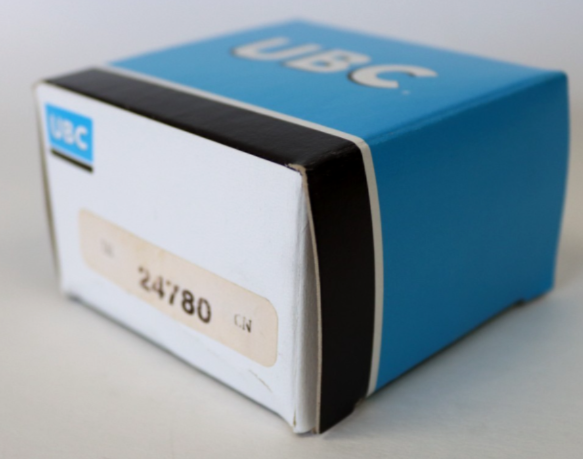

24780 Tapered Roller Bearing Cone (0826)

$ 30.40

Key Dimensions

Cone Part Number	24780
Bore (d)	1 5/8 in./41.275 mm
Inner Ring Width (B)	0.9063 in./23.020 mm
Dynamic Radial Load Rating - 1M Revs (C1) ¹	17000 lbf./75500 N
Dynamic Radial Load Rating - 90M Revs (C90) ²	4400 lbf./19600 N
K Factor ³	1.49

Other Dimensions

Weight	2 lb./ 0.908 Kg
Effective Center Location⁴	-0.19 in./-4.8 mm
Max Shaft Fillet Radius⁵	0.14 in3.600 mm
Shaft Backing Shoulder Diameter - Frontface (da)	1.85 in./47 mm
Shaft Backing Shoulder Diameter - Backface (db)	2.13 in./54 mm
Cage Location rel. to BF (Aa)	0.03 in./0.8 mm
Cage Location rel. to FF (Ab)	0.07 in./1.8 mm

Ratings

Dynamic Axial Rating - 90M Revs (Ca90)⁶	2960 lbf./13200 N
Static Radial Load Rating (CO)	20100 lbf./89200 N

Factors

G1 Factor	26.4
G2 Factor	12.5
Geometry Factor (Cg)⁷	0.0767

Brand: HL

¹ Based on 1 x 10⁶ revolutions L₁₀ life, for the ISO life calculation method.
² Based on 90 x 10⁶ revolutions L₁₀ life, for life calculation method. C₉₀ and C_a90 are radial and thrust values.
³ These factors apply for both inch and metric calculations.
⁴ Negative value indicates effective center inside cone backface.
⁵ These maximum fillet radii will be cleared by the bearing corners.
⁶ Based on 90 x 10⁶ revolutions L₁₀ life, for life calculation method. C₉₀ and C_a90 are radial and thrust values for a single-row, C₉₀₍₂₎ is the two-row radial value.
⁷ Geometry constant for Lubrication Life Adjustment Factor a3l.
