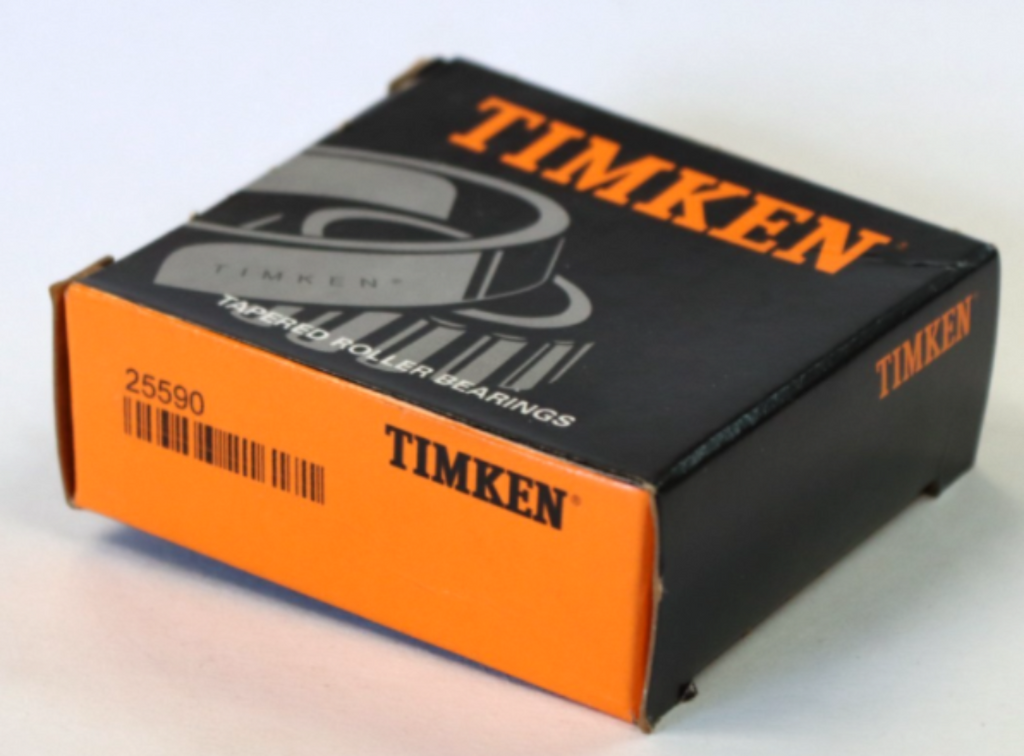

25590 Timken Tapered Roller Bearing Cone (0826)

$ 38.75

Cone Part Number	25590
Bore (d)	1.7960 in./45.618 mm
Inner Ring Width (B)	1.0000 in./25.400 mm
Dynamic Radial Load Rating - 1M Revs (C1) ¹	20300 lbf./90500 N
Dynamic Radial Load Rating - 90M Revs (C90) ²	5270 lbf./23500 N
K Factor ³	1.74

Net Weight	0.776 lb.
Effective Center Location⁴	-0.25 in./-6.4 mm
Max Shaft Fillet Radius⁵	0.14 in./3.600 mm
Shaft Backing Shoulder Diameter - Frontface (da)	2.01 in./51 mm
Shaft Backing Shoulder Diameter - Backface (db)	2.28 in./58 mm
Cage Location rel. to BF (Aa)	0.01 in0.3 mm
Cage Location rel. to FF (Ab)	0.06 in1.5 mm

Dynamic Axial Rating - 90M Revs (Ca90)⁶	3020 lbf./13500 N
Static Radial Load Rating (CO)	24900 lbf./111000 N
