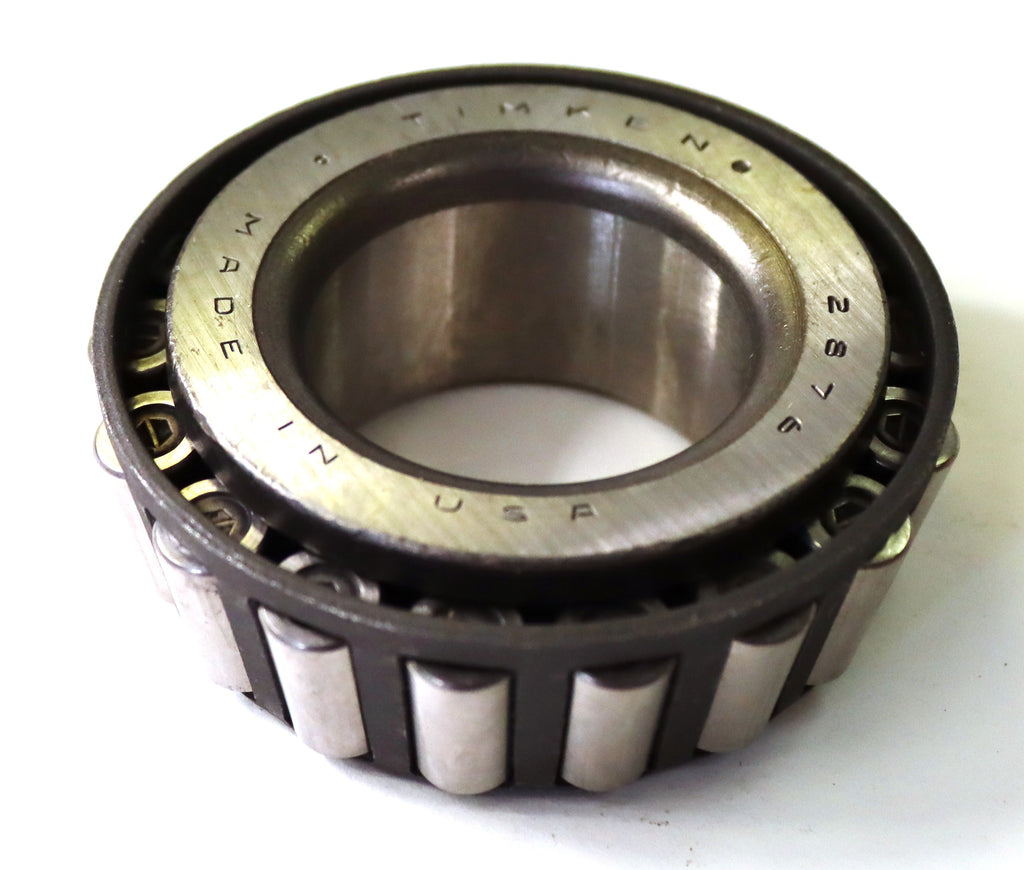

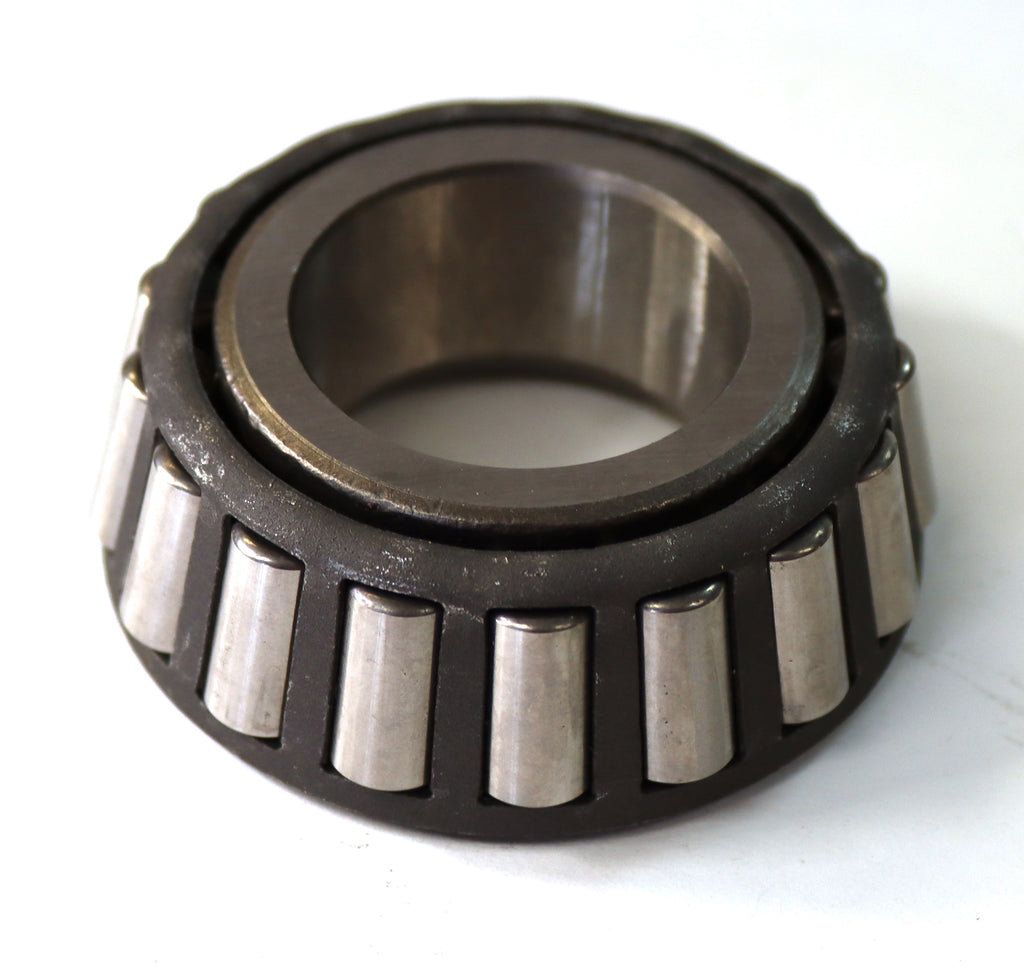

2876 Timken Tapered Roller Bearing Cone (0926)

2876 Timken Tapered Roller Bearing Cone (0926)

$ 27.20

Key Dimensions

Cone Part Number	2876
Bore (d)	1 5/16 in33.338 mm
Inner Ring Width (B)	0.9375 in23.813 mm
Dynamic Radial Load Rating - 1M Revs (C1) ¹	16400 lbf73200 N
Dynamic Radial Load Rating - 90M Revs (C90) ²	4260 lbf19000 N
K Factor ³	1.59

Other Dimensions

Net Weight	0.712 lbs.
Effective Center Location⁴	-0.22 in-5.6 mm
Max Shaft Fillet Radius⁵	0.140 in3.56 mm
Shaft Backing Shoulder Diameter - Frontface (da)	1.57 in40 mm
Shaft Backing Shoulder Diameter - Backface (db)	1.81 in46 mm
Cage Location rel. to BF (Aa)	0 in0 mm
Cage Location rel. to FF (Ab)	0.05 in1.3 mm

Ratings

Dynamic Axial Rating - 90M Revs (Ca90)⁶	2690 lbf12000 N
Static Radial Load Rating (CO)	18800 lbf83800 N

Factors

G1 Factor	23.1
G2 Factor	12.4
Geometry Factor (Cg)⁷	0.0718
