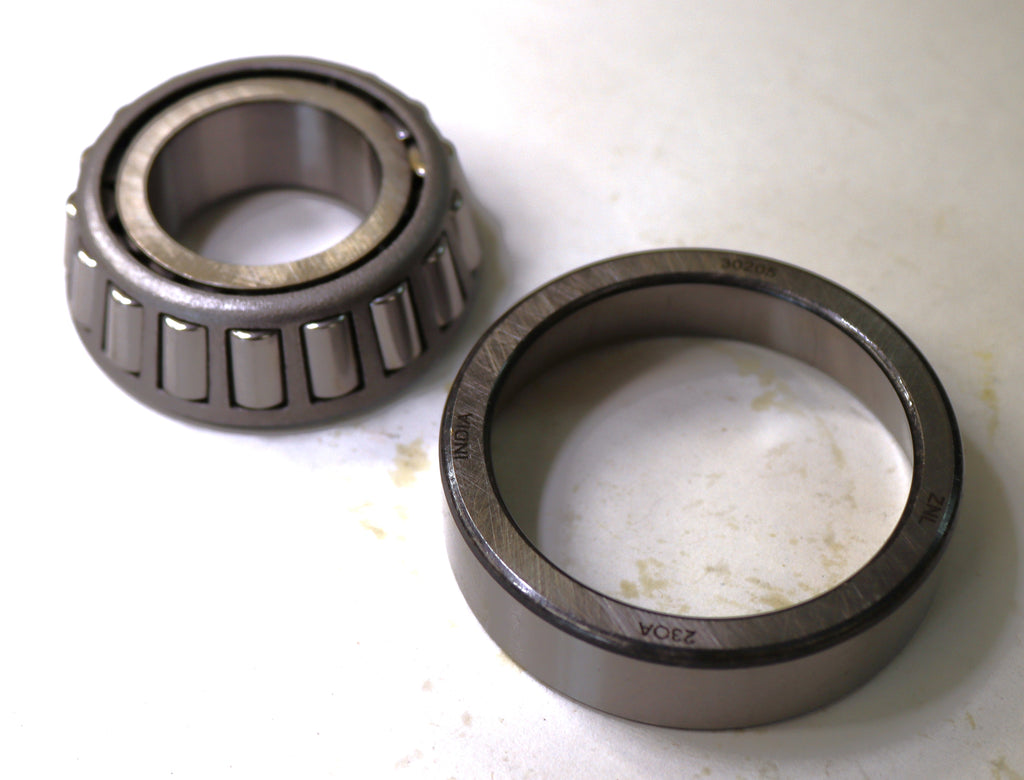

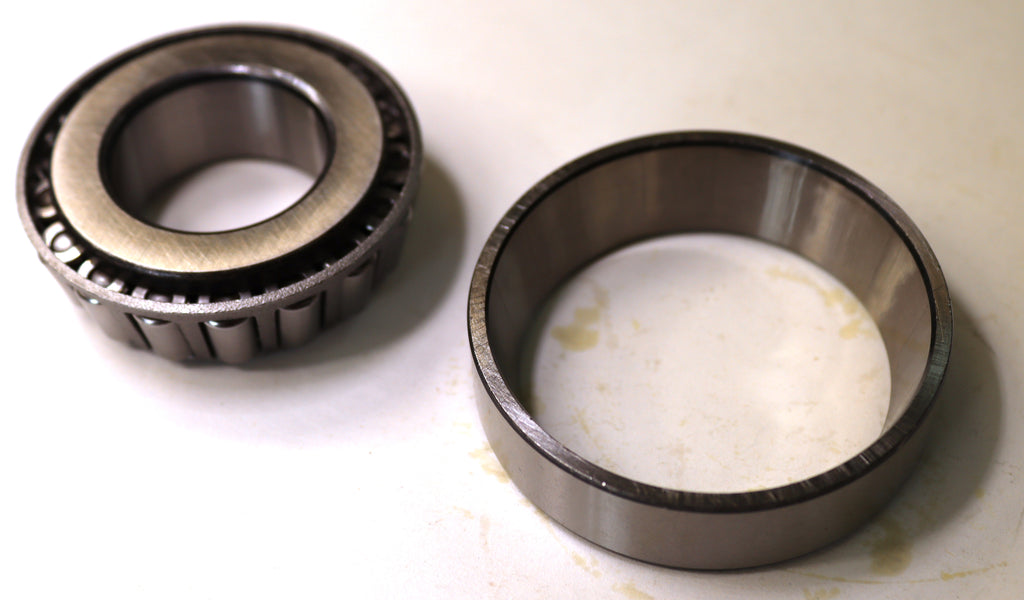

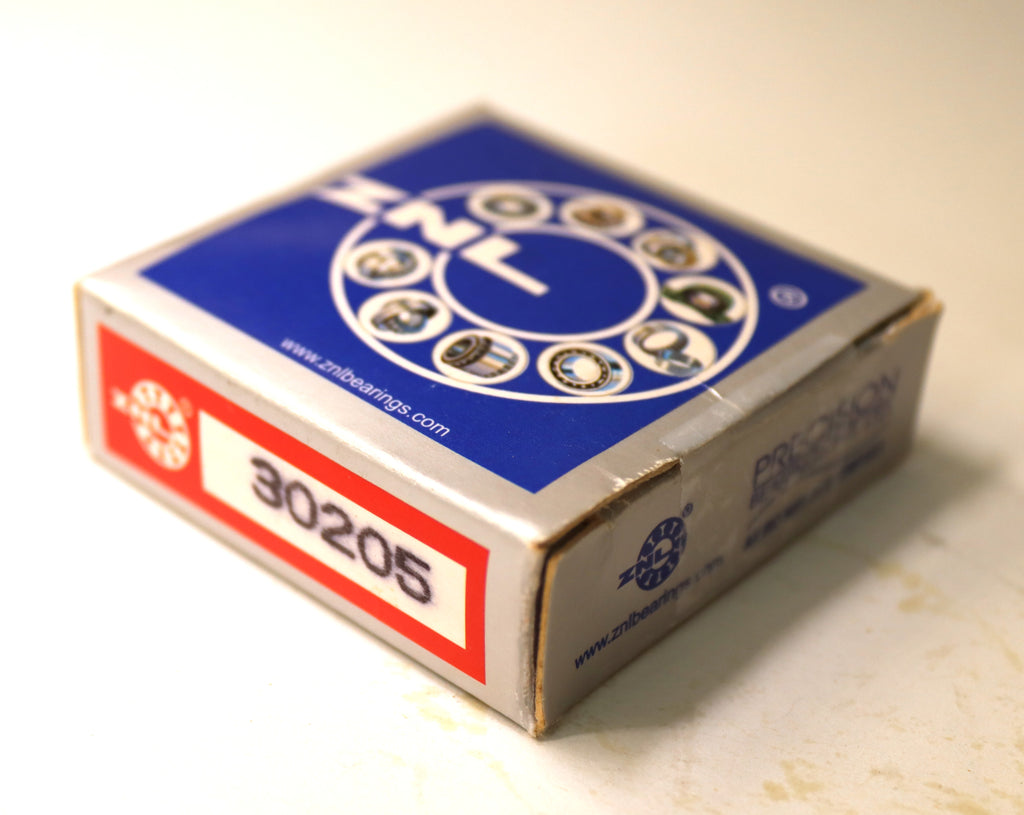

30205, ZNL Brand, Metric Tapered Roller Bearing Assembly (0926)

$ 18.14

Key Dimensions

Cone Part Number	X30205M
Cup Part Number	Y30205M
Bore (d)	25 mm / 0.9843 in
O.D. (D)	52 mm / 2.0472 in
Width (T)	16.250 mm / 0.6398 in
Dynamic Radial Load Rating - 1M Revs (C1) ¹	36900 N / 8300 lbf
Dynamic Radial Load Rating - 90M Revs (C90) ²	9570 N / 2150 lbf
e Factor ³	0.37
K Factor ⁴	1.56
Series	30205M
Y Factor ⁵	1.6

Other Dimensions

Inner Ring Width (B)	15.000 mm / 0.5906 in
Outer Ring Width (C)	13 mm / 0.5118 in
Effective Center Location⁶	-3.8 mm / -0.15 in
Max Shaft Fillet Radius⁷	1.020 mm / 0.040 in
Max Housing Fillet Radius⁸	1.02 mm / 0.04 in
Shaft Backing Shoulder Diameter - Frontface (da)	31 mm / 1.22 in
Shaft Backing Shoulder Diameter - Backface (db)	32.5 mm / 1.28 in
Housing Backing Shoulder Diameter - Frontface (Da)	49.00 mm / 1.93 in
Housing Backing Shoulder Diameter - Backface (Db)	45.47 mm / 1.79 in
Cage Location Relative to Backface (Aa)	0 mm / 0 in
Cage Location Relative to Frontface (Ab)	2.3 mm0.09 in
Weight	0.346 lb

Ratings

Dynamic Axial Rating - 90M Revs (Ca90)⁹	6150 N / 1380 lbf
Static Radial Load Rating (C0)	38300 N / 8620 lbf

Factors

G1 Factor	9
G2 Factor	8
Geometry Factor (Cg)¹⁰	0.0529

Made In India
