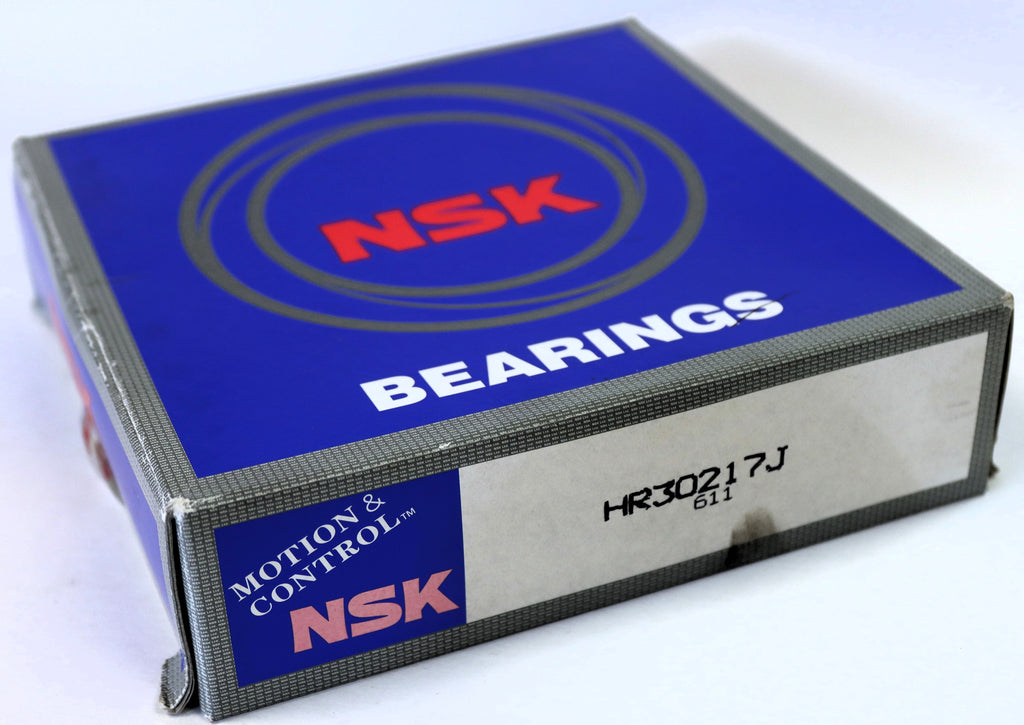

30217 NSK Metric Tapered Roller Bearing Assy. (0926)

30217 NSK Metric Tapered Roller Bearing Assy. (0926)

$ 57.00

Key Dimensions

Cone Part Number	X30217
Cup Part Number	Y30217
Bore (d)	85 mm3.3465 in
O.D. (D)	150 mm5.9055 in
Width (T)	30.5 mm1.2008 in
Dynamic Radial Load Rating - 1M Revs (C1) ¹	236000 N/ 53100 lbf
Dynamic Radial Load Rating - 90M Revs (C90) ²	61200 N / 13800 lbf
e Factor ³	0.42
K Factor ⁴	1.39
Series	30217
Y Factor ⁵	1.43

Other Dimensions

Inner Ring Width (B)	28.000 mm / 1.1024 in
Outer Ring Width (C)	24 mm / 0.9449 in
Effective Center Location⁶	-0.3 mm / -0.01 in
Max Shaft Fillet Radius⁷	2.540 mm / 0.100 in
Max Housing Fillet Radius⁸	2.03 mm / 0.08 in
Shaft Backing Shoulder Diameter - Frontface (da)	93 mm / 3.66 in
Shaft Backing Shoulder Diameter - Backface (db)	97 mm / 3.82 in
Housing Backing Shoulder Diameter - Frontface (Da)	142.00 mm / 5.63 in
Housing Backing Shoulder Diameter - Backface (Db)	136.91 mm / 5.39 in
Cage Location Relative to Backface (Aa)	1.3 mm / 0.05 in
Cage Location Relative to Frontface (Ab)	5.1 mm / 0.2 in
Net Weight	2.10 Kg. / 4.6 lb

Ratings

Dynamic Axial Rating - 90M Revs (Ca90)⁹	44000 N/ 9900 lbf
Static Radial Load Rating (C0)	236000 / N53000 lbf

Factors

G1 Factor	101.2
G2 Factor	24.9
Geometry Factor (Cg)¹⁰	0.0833
