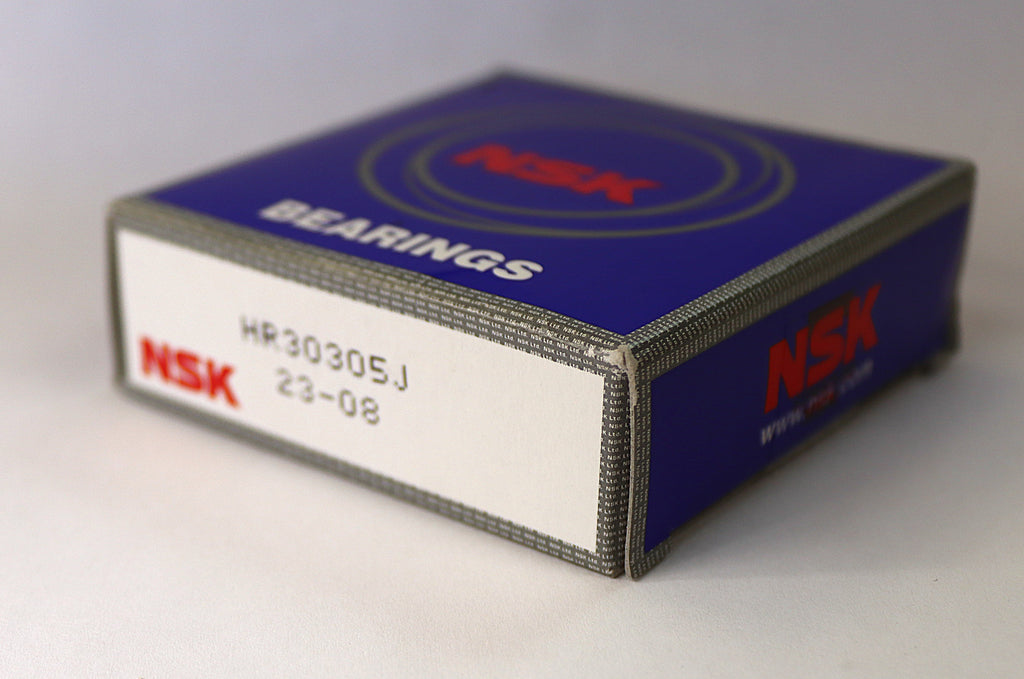

30305 NSK Metric Tapered Roller Bearing Assy. (0926)

30305 NSK Metric Tapered Roller Bearing Assy. (0926)

$ 29.30

NSK Part# HR 30305 J

Key Dimensions

Cone Part Number	X30305M
Cup Part Number	Y30305M
Bore (d)	25 mm / 0.9843 in
O.D. (D)	62 mm / 2.4409 in
Width (T)	18.25 mm / 0.7185 in
Dynamic Radial Load Rating - 1M Revs (C1) ¹	53800 N / 12100 lbf
Dynamic Radial Load Rating - 90M Revs (C90) ²	13900 N / 3130 lbf
e Factor ³	0.3
K Factor ⁴	1.95
Series	30305
Y Factor ⁵	2

Other Dimensions

Inner Ring Width (B)	17 mm / 0.6693 in
Outer Ring Width (C)	15 mm / 0.5906 in
Effective Center Location⁶	-5.1 mm-0.2 in
Max Shaft Fillet Radius⁷	1.520 mm / 0.060 in
Max Housing Fillet Radius⁸	1.52 mm / 0.06 in
Shaft Backing Shoulder Diameter - Frontface (da)	32.5 mm / 1.28 in
Shaft Backing Shoulder Diameter - Backface (db)	34.5 mm / 1.36 in
Housing Backing Shoulder Diameter - Frontface (Da)	57.66 mm / 2.27 in
Housing Backing Shoulder Diameter - Backface (Db)	55.12 mm / 2.17 in
Cage Location Relative to Backface (Aa)	-0.5 mm / -0.02 in
Cage Location Relative to Frontface (Ab)	3.3 mm 0.13 in
Net Weight	0.3 Kg / 0.591 lb

Ratings

Dynamic Axial Rating - 90M Revs (Ca90)⁹	7160 N / 1610 lbf
Static Radial Load Rating (C0)	49600 N / 11200 lbf

Factors

G1 Factor	11.8
G2 Factor	8.5
Geometry Factor (Cg)¹⁰	0.0532
