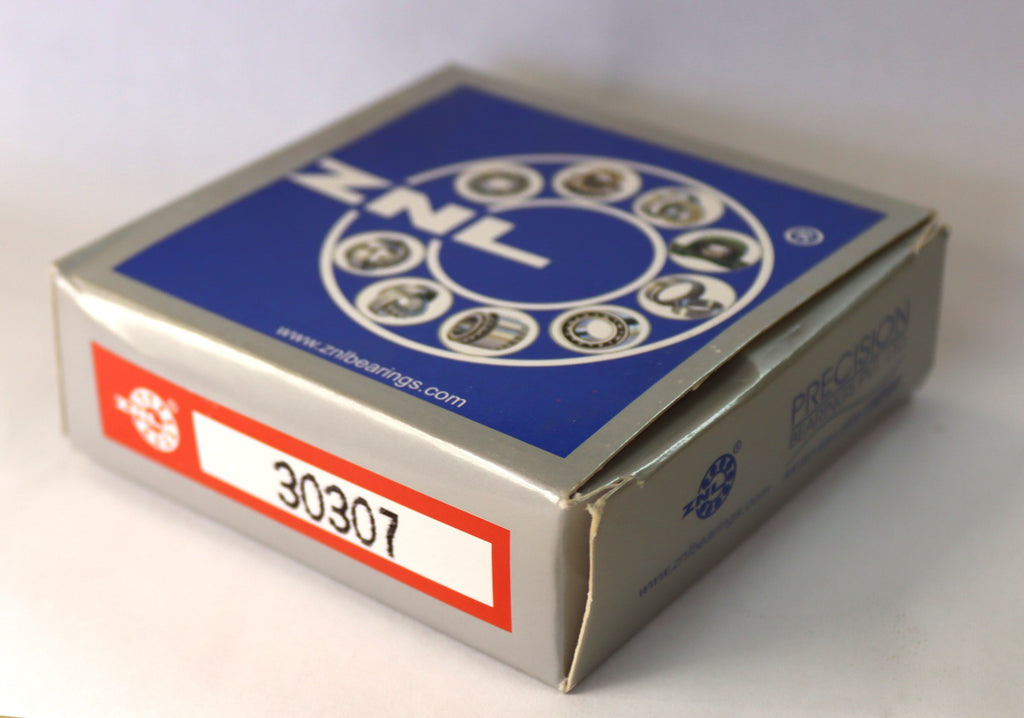

30307, ZNL Brand, Metric Tapered Roller Bearing Assy. (0926)

$ 27.80

ZNL Part# 30307

Key Dimensions

Cone Part Number	X30307M
Cup Part Number	Y30307M
Bore (d)	35 mm1.378 in
O.D. (D)	80 mm3.1496 in
Width (T)	22.75 mm0.8957 in
Dynamic Radial Load Rating - 1M Revs (C1) ¹	87200 N19600 lbf
Dynamic Radial Load Rating - 90M Revs (C90) ²	22600 N5080 lbf
e Factor ³	0.31
K Factor ⁴	1.85
Series	30307M
Y Factor ⁵	1.9

Other Dimensions

Inner Ring Width (B)

.000 mm0.8268 in

Outer Ring Width (C)

18 mm0.7087 in

Effective Center Location⁶

-5.8 mm-0.23 in

Max Shaft Fillet Radius⁷

2.030 mm0.080 in

Max Housing Fillet Radius⁸

1.52 mm0.06 in

Shaft Backing Shoulder Diameter - Frontface (da)

4 Shaft Backing Shoulder Diameter - Backface (db)

3.5 mm1.71 in

46.5 mm 1.83 in

Housing Backing Shoulder Diameter - Frontface (Da)

75.90 mm 2.99 in

Housing Backing Shoulder Diameter - Backface (Db)

71.88 mm 2.83 in

Cage Location Relative to Backface (Aa)

0 mm 0 in

Cage Location Relative to Frontface (Ab)

4.3 mm 0.17 in

Net Weight

0.5 Kg / 1.129 lb.

Ratings

Dynamic Axial Rating - 90M Revs (Ca90)⁹	12200 N 2740 lbf
Static Radial Load Rating (C0)	86100 N 19300 lbf
